19100-01280 PUMP ASSY, INJECTI Calibration Data


Rating:
76
Buy PUMP ASSY, INJECTI 19100-01280 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DELTA 13B
Engine
13B
Serial start-end
8510--8807
Info
Injector Nozzle
093500-2890
Injector nozzle: 0935002890

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400320
Governor assy, mec
1908900271
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
19100-01280 DAIHATSU
A4,R801
01.002
BODY ASSY, INJECTI
09010-05760 DAIHATSU
A4
01.003
GOVERNOR ASSY, MEC
09130-00780 DAIHATSU
R801
02.004
COVER ASSY, GOVERN
09145-00232 DAIHATSU
01.005
PUMP ASSY, FUEL FE
09210-01850 DAIHATSU
KE

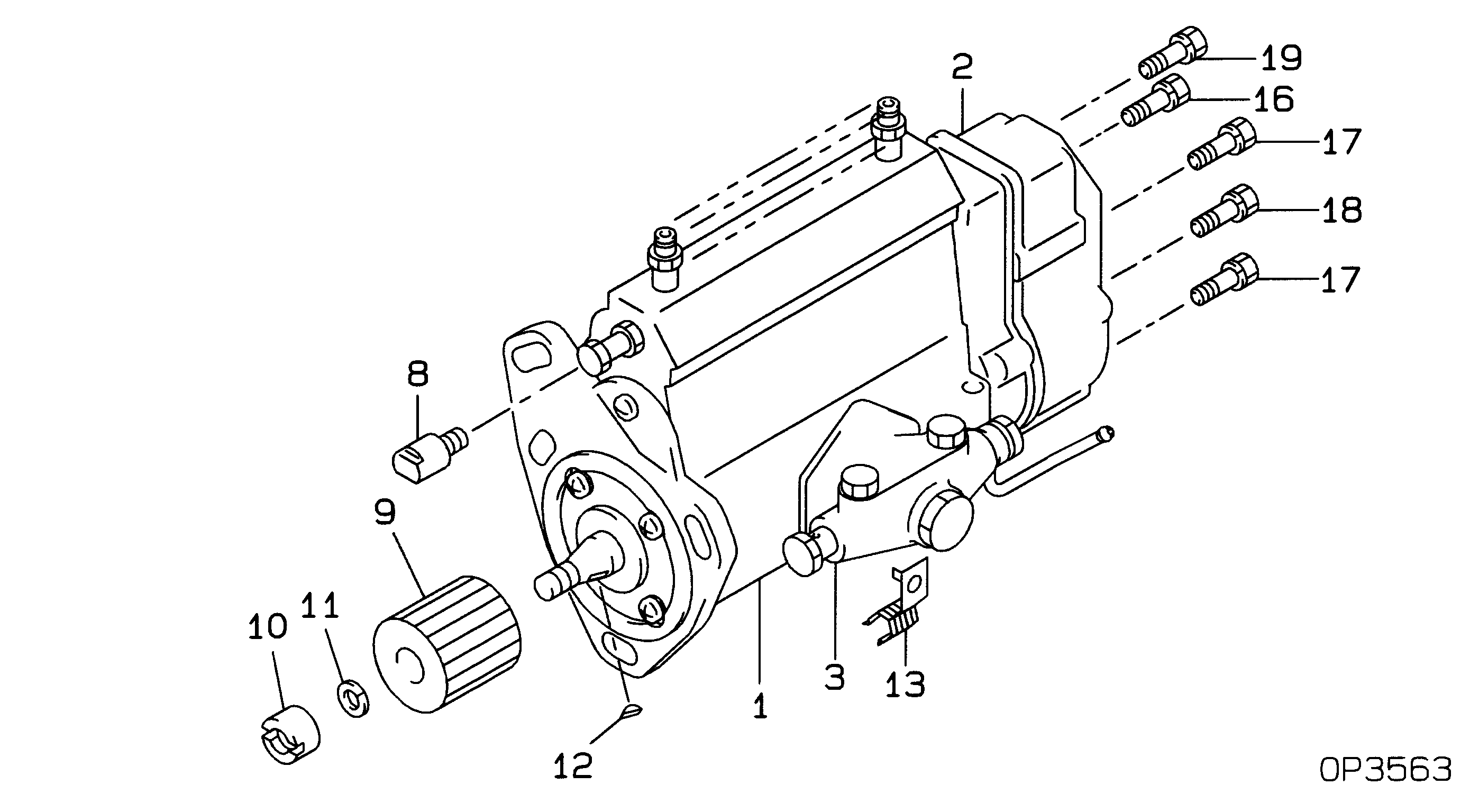

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-01280
PUMP ASSY, INJECTI
A4,R801
001
[01]
09010-05760
BODY ASSY, INJECTI
A4
002
[01]
09130-00780
GOVERNOR ASSY, MEC
R801
003
[01]
09210-01850
PUMP ASSY, FUEL FE
KE
008
[01]
09001-80090
COVER, CONTROL RAC
009
[01]
09257-50170
SHAFT, SPLINE
010
[01]
09001-20190
NUT, TIMER ROUND
011
[01]
94901-50590
WASHER, SPRING
T3.5
012
[01]
94913-00210
KEY, WOODRUFF
T3.985
013
[01]
09048-10030
CLAMP, HOSE
016
[01]
91418-06201
BOLT, W/WASHER
M6,L20
017
[04]
94904-72690
BOLT, W/WASHER
M6,L16
018
[01]
94904-74850
BOLT, W/WASHER
M6,L12.5
019
[01]
94904-73910
BOLT, W/WASHER
M8,L18

Include in ##:

19100-01280 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-01280

PUMP ASSY, INJECTI

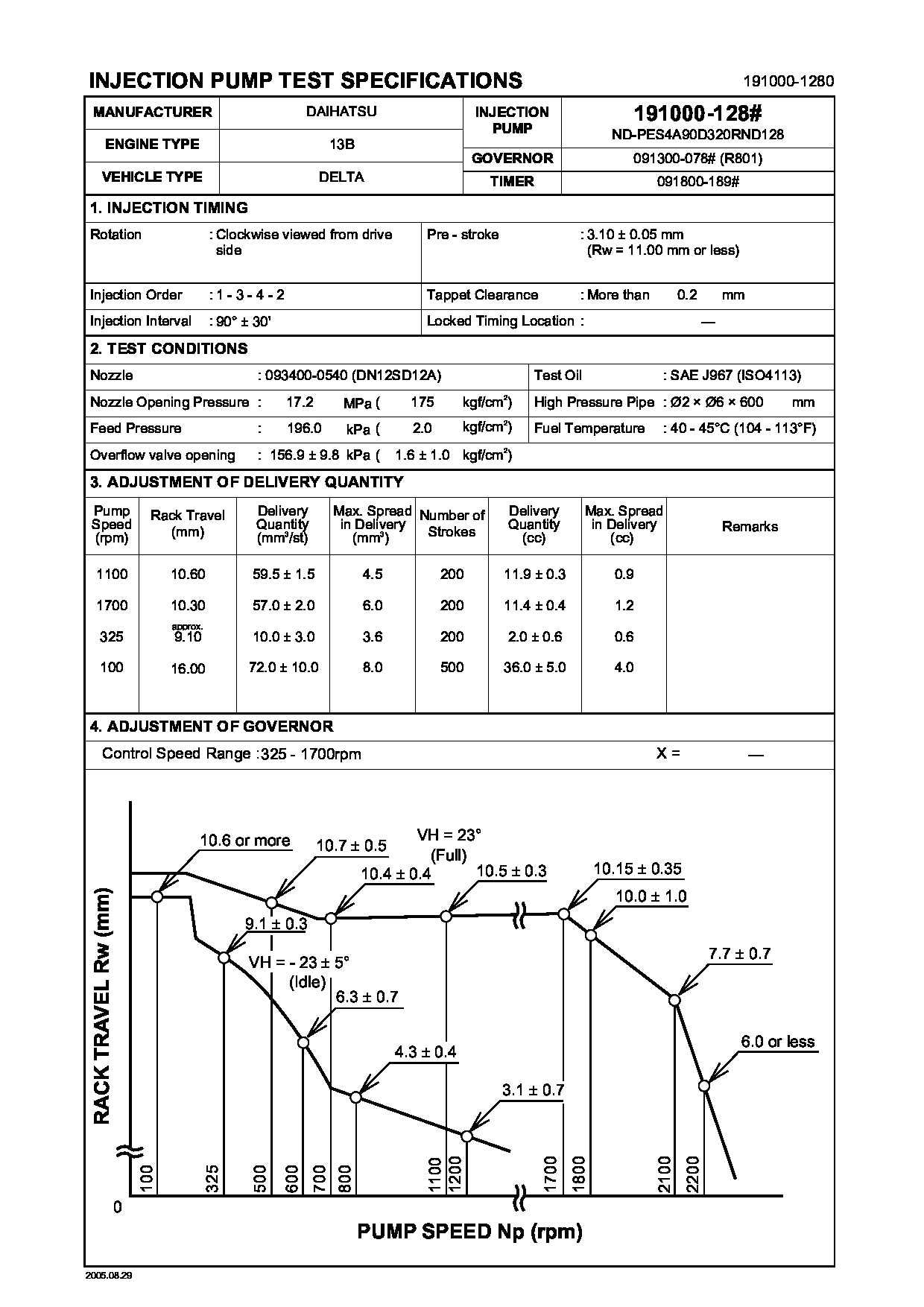

Test Calibration Data:

Get Full test data file
1910001280 22100-87C36
EC1280
EC1280
