09210-01850 PUMP ASSY, FUEL FE Denso Cross


Rating:
2
Buy PUMP ASSY, FUEL FE 09210-01850 genuine, new aftermarket engine parts with delivery

Information pump assy, fuel fe Denso

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe

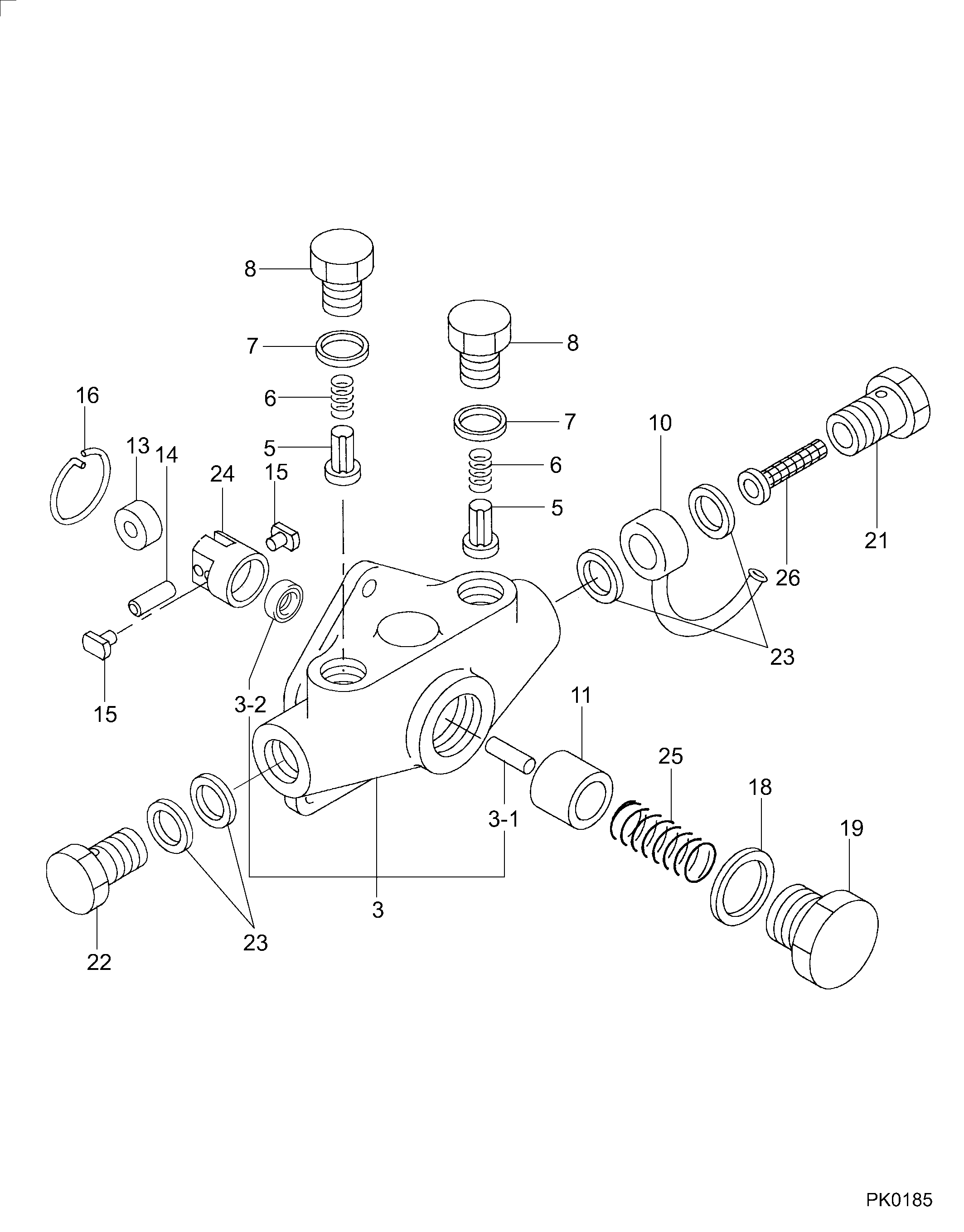

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09210-01850
PUMP ASSY, FUEL FE
KE
003
[01]
HOUSING SUB-ASSY,
003-001
[1C]
ROD, FEED PUMP PUS
BLUE -8405
003-001
[1C]
ROD, FEED PUMP PUS
KEY -8405
003-001
[1C]
ROD, FEED PUMP PUS
YELLOW -8405
003-001
[1C]
ROD, FEED PUMP PUS
GREEN -8405
003-001
[1C]
ROD, FEED PUMP PUS
WHITE -8405
003-001
[1C]
ROD, FEED PUMP PUS
BROWN -8405
003-001
[01]
ROD, FEED PUMP PUS
8405-
003-002
[01]
SEAL, OIL
D13,T8.2 -8405
003-002
[01]
SEAL, OIL
D14,T5.5 8405-
005
[02]
VALVE, FEED PUMP C
006
[02]
SPRING, FEED PUMP
007
[02]
GASKET, CHECK VALV
008
[02]
PLUG, FEED PUMP CH
010
[01]
NIPPLE, SWIVEL
011
[01]
PISTON, FEED PUMP
013
[01]
ROLLER, FEED PUMP
014
[01]
PIN, FEED PUMP TAP
015
[02]
BLOCK, FEED PUMP T
016
[01]
RING, SNAP
ID28
018
[01]
WASHER, COPPER PLA
T1
019
[01]
PLUG, FEED PUMP PI
021
[01]
SCREW, FUEL PIPE H
022
[01]
SCREW, HOLLOW
023
[04]
WASHER, FUEL PIPE
024
[01]
TAPPET, FEED PUMP
025
[01]
SPRING, FEED PUMP
026
[01]
FILTER, FEED PUMP

Cross reference number



Part num
Firm num
Firm
Name
09210-01850

PUMP ASSY, FUEL FE
