19100-06533 PUMP ASSY, INJECTI Calibration Data


Rating:
66
Buy PUMP ASSY, INJECTI 19100-06533 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
19100-06533 MITSUBISHI
A6,R801
01.002
BODY ASSY, INJECTI
09010-05701 MITSUBISHI
A6
01.003
BODY ASSY, INJECTI
09010-09960 MITSUBISHI
A6
01.004
GOVERNOR ASSY, MEC
09130-02480 MITSUBISHI
R801
02.005
COVER ASSY, GOVERN
09145-00150 MITSUBISHI
01.006
TIMER ASSY, AUTOMA
09180-01281 MITSUBISHI
SCZ -8107
01.006
TIMER ASSY, AUTOMA
09180-01281 MITSUBISHI
SCZ 8107-
01.007
PUMP ASSY, FUEL FE
09210-01440 MITSUBISHI
KE

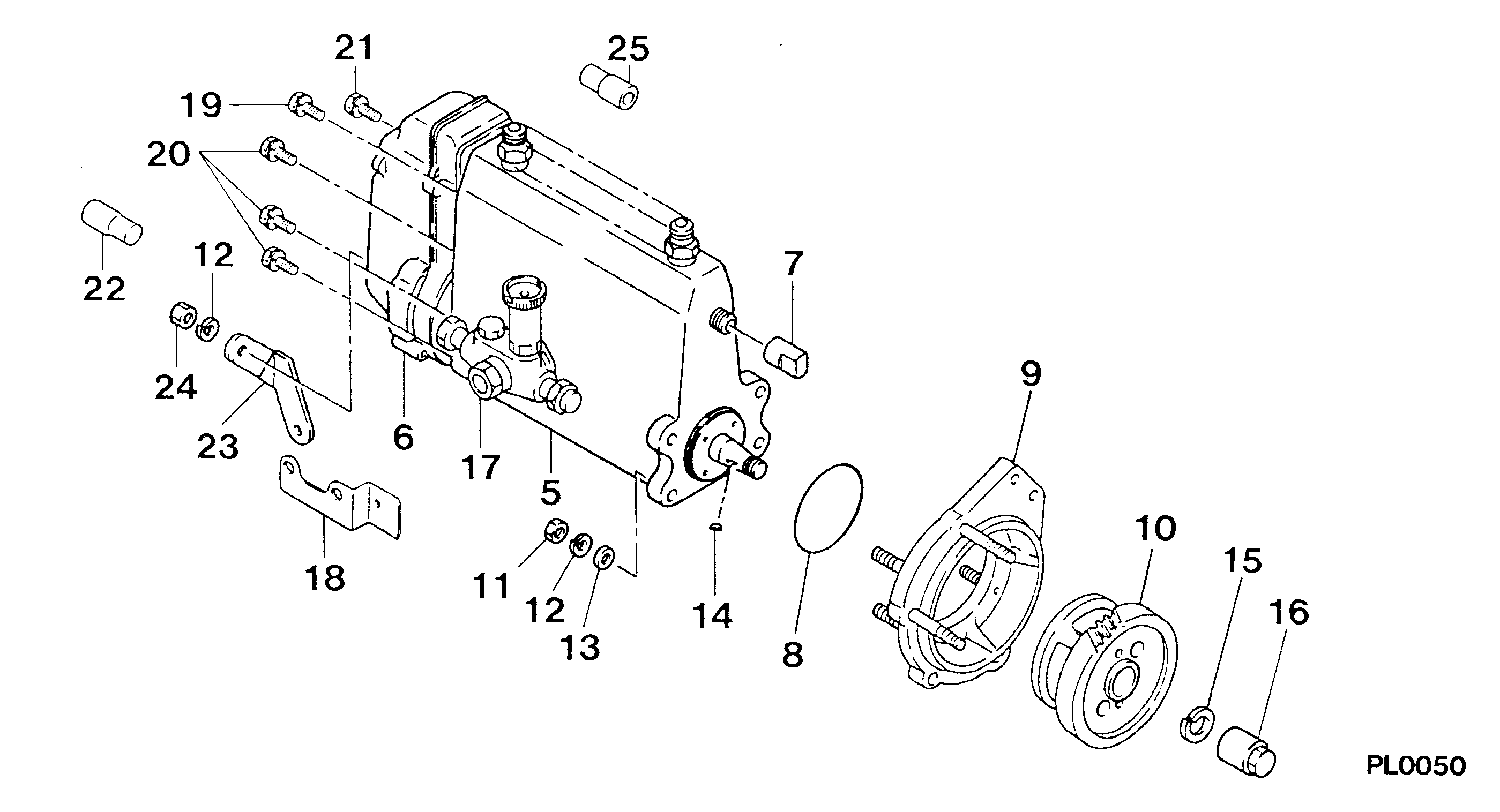

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-06533
PUMP ASSY, INJECTI
A6,R801
005
[01]
09010-05701
BODY ASSY, INJECTI
A6 -9207
005
[01]
09010-09960
BODY ASSY, INJECTI
A6 9207-
006
[01]
09130-02482
GOVERNOR ASSY, MEC
R801
007
[01]
09001-80090
COVER, CONTROL RAC
008
[01]
94914-02840
O-RING
ID74.1
009
[01]
09006-00310
COVER SUB-ASSY, TI
010
[01]
09180-01281
TIMER ASSY, AUTOMA
SCZ
011
[04]
94905-02680
NUT, HEXAGON
M10
012
[05]
90258-10001
WASHER, SPRING
M10
013
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10
014
[01]
94913-00210
KEY, WOODRUFF
T3.985
015
[01]
94901-40210
WASHER, COUNTERSUN
T1.5ID14
016
[01]
09001-20220
NUT, TIMER ROUND
017
[01]
09210-01440
PUMP ASSY, FUEL FE
KE
018
[01]
09009-20100
BRACKET
019
[01]
94904-73910
BOLT, W/WASHER
M8,L18
020
[05]
94904-72690
BOLT, W/WASHER
M6,L16
021
[01]
91418-06201
BOLT, W/WASHER
M6,L20
022
[01]
09028-50021
CAP
FOR MAX.SPEED
023
[01]
09009-20140
BRACKET
024
[01]
91266-10081
NUT, HEXAGON
M10
025
[01]
09028-50050
CAP
FOR FULL-LOAD

Include in ##:

19100-06533 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-06533

PUMP ASSY, INJECTI

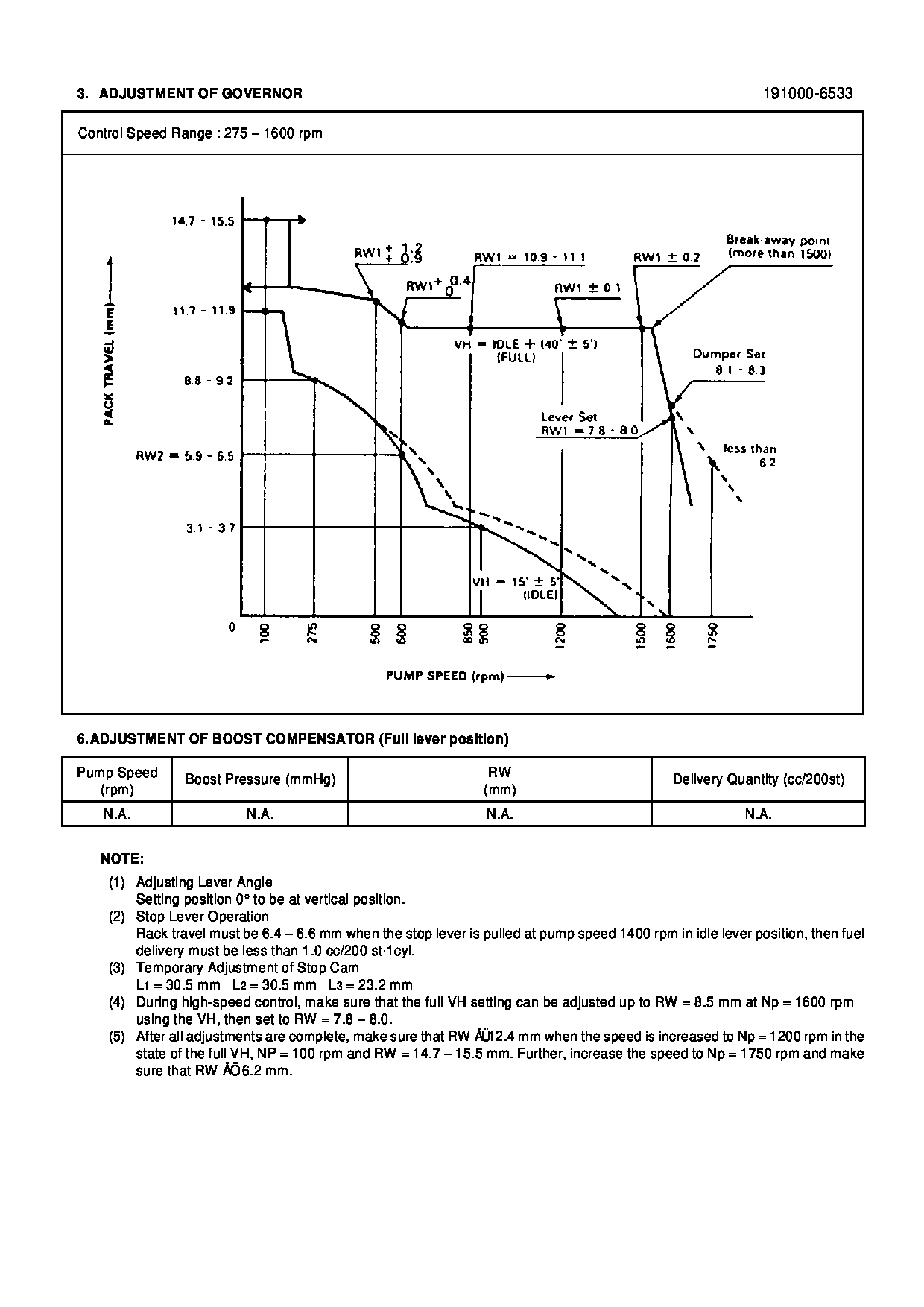

Test Calibration Data:

Get Full test data file
1910006533 ME076334
EC6533
EC6533
