19100-06430 PUMP ASSY, INJECTI Calibration Data


Rating:
50
Buy PUMP ASSY, INJECTI 19100-06430 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
BUS H06C-TE
Engine
H06C-TE
Serial start-end
8906--9003
Info
Injector Nozzle
093500-4370
Injector nozzle: 0935004370

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
ECD-P1
01.002
BODY ASSY, INJECTI
*1
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
02.005
COMPENSATOR SUB-AS
01.006
PUMP ASSY, FUEL FE
KE
01.007
COUPLING ASSY
01.008
TIMER ASSY, HYDRAU
01.009
VALVE ASSY, TIMING

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-06430
PUMP ASSY, INJECTI
ECD-P1
22090-1560 HINO
004
[01]
VALVE ASSY, OVERFL
1.5-1.8K
22107-1290A HINO
005
[02]
WASHER
T1
22847-1940A HINO
006
[01]
SENSOR ASSY, POSIT
89441-1041A HINO
007
[05]
BOLT, W/WASHER
M6,L16
22815-2410A HINO
008
[01]
VALVE ASSY, TIMING
009
[01]
BOLT, W/WASHER
M6,L20
22815-1290A HINO
010
[01]
CAP
22323-1210A HINO
011
[01]
BOLT, W/WASHER
M8,L18
22815-2820A HINO
013
[01]
COUPLING ASSY
SP
22610-1290 HINO
014
[01]
TIMER ASSY, HYDRAU
015
[01]
NUT, TIMER ROUND
22511-1060A HINO
016
[01]
WASHER, COUNTERSUN
T1.5ID14
22867-1320A HINO
017
[01]
KEY, WOODRUFF
W4,H5
22895-1080A HINO
018
[01]
BODY ASSY, INJECTI
019
[03]
WASHER, SPRING
FOR M6
28219-1110A HINO
020
[03]
NUT, HEXAGON
M6
22825-1480A HINO
021
[01]
PUMP ASSY, FUEL FE
KE22
22570-1250A HINO
022
[01]
CLIP, CORD
FOR FULL-LOAD
22323-1190A HINO
023
[01]
GOVERNOR ASSY, MEC
R801
029
[04]
BOLT, W/WASHER
M6,L45
22815-2590A HINO
031
[01]
BRACKET ASSY
032
[01]
BRACKET
033
[02]
BOLT, W/WASHER
M8,L14
034
[02]
BOLT, W/WASHER
M6,L12
22815-1500A HINO
035
[2C]
WASHER, PLATE, SK
T0.1
22885-1440A HINO
035
[2C]
WASHER, PLATE, SK
T0.2
22885-1450A HINO
035
[2C]
WASHER, PLATE, SK
T0.15
22885-1460A HINO
036
[01]
CLIP, CORD
22131-1231A HINO
037
[01]
BOLT, W/WASHER
22815-2650A HINO
038
[01]
NUT, HEXAGON
M5
22456-1020A HINO
039
[04]
BAND
040
[01]
PIPE, INJECTION
041
[02]
CLIP, CORD
22682-1010A HINO

Include in ##:

19100-06430 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-06430
22090-1560
PUMP ASSY, INJECTI
1910006430
22090-1560
HINO
PUMP ASSY, INJECTI

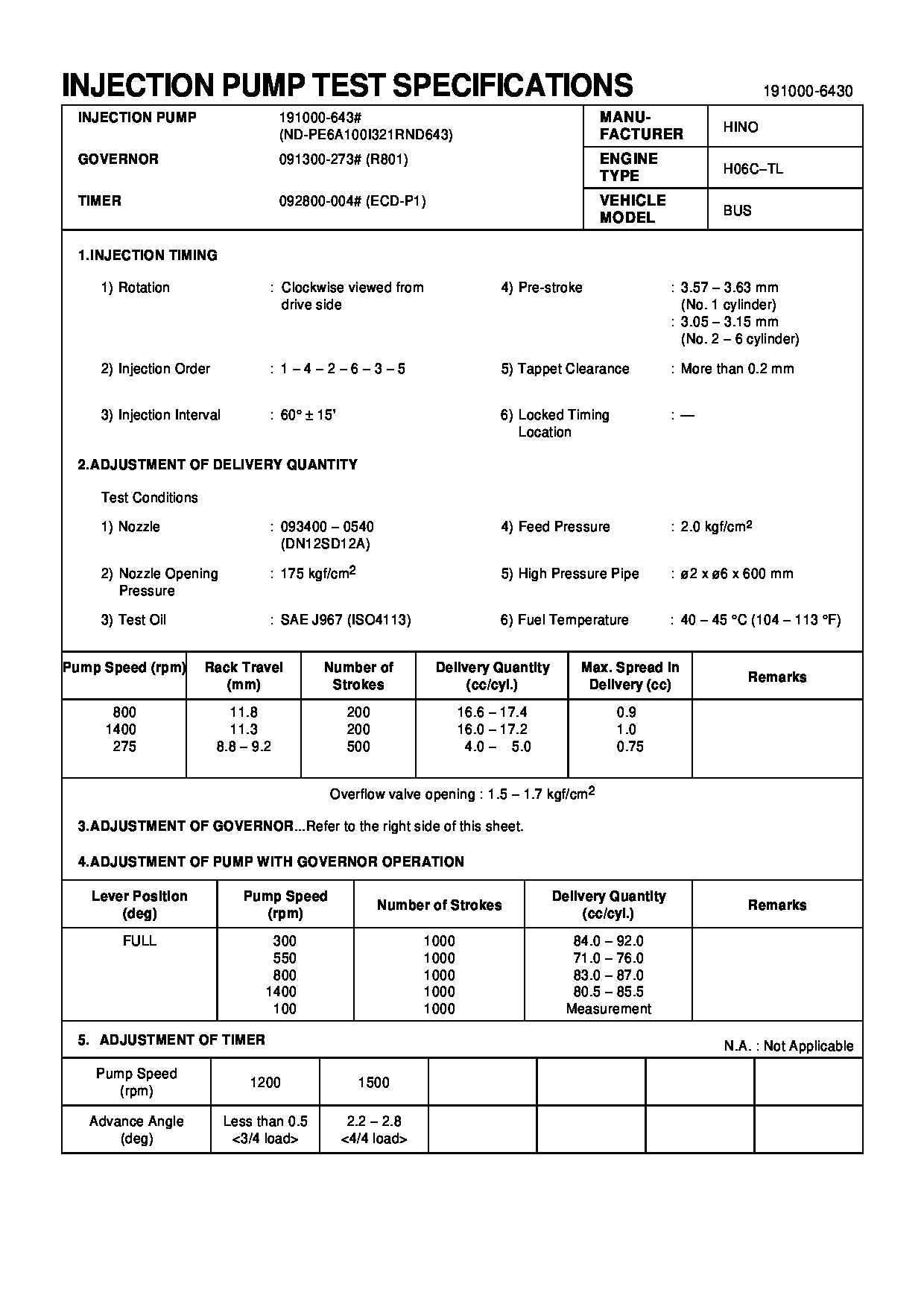

Test Calibration Data:

1910006430 22090-1560
