19100-05640 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19100-05640 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

TRUCK H06C-TB

Engine

H06C-TB

Serial start-end

8801--9512

Info

Injector Nozzle

093500-2720

Injector nozzle: 0935002720

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

Governor assy, mec

Timer assy, automa

Pump assy, fuel fe

Components :

00.001

PUMP ASSY, INJECTI

19100-05640 HINO

A6,R801

01.002

BODY ASSY, INJECTI

09010-08070 HINO

A6:COLD SPEC

02.003

COVER, BEARING

09020-10410 HINO

DUMMY

01.004

GOVERNOR ASSY, MEC

09130-02270 HINO

R801

02.005

COVER ASSY, GOVERN

09145-00223 HINO

02.006

COMPENSATOR SUB-AS

19260-00140 HINO

01.007

TIMER ASSY, AUTOMA

09180-02070 HINO

SA:2SPRING COLD

01.008

PUMP ASSY, FUEL FE

09210-01830 HINO

01.009

COUPLING ASSY

09250-00500 HINO

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19100-05640

PUMP ASSY, INJECTI

A6,R801

22010-5380 HINO

004

[01]

09031-00130

VALVE ASSY, OVERFL

1.5-1.7K

22107-1090A HINO

005

[02]

94901-02480

WASHER

T1,D15.9

22847-1940A HINO

006

[01]

09001-80090

COVER, CONTROL RAC

22114-1250A HINO

007

[05]

94904-72690

BOLT, W/WASHER

M6,L16

22815-2410A HINO

009

[01]

91418-06201

BOLT, W/WASHER

M6,L20

22815-1290A HINO

010

[01]

09028-50030

CAP

FOR MAX.SPEED

22323-1210A HINO

011

[01]

94904-73910

BOLT, W/WASHER

M8,L18

22815-2820A HINO

013

[01]

09250-00500

COUPLING ASSY

22610-1370A HINO

014

[01]

09001-20180

NUT, TIMER ROUND

22511-1070A HINO

015

[01]

09180-02070

TIMER ASSY, AUTOMA

SA:2SPRING COLD

016

[01]

94901-50590

WASHER, SPRING

T3.5

22877-1620A HINO

017

[01]

94913-00210

KEY, WOODRUFF

T3.985

22895-1010A HINO

018

[01]

09010-08070

BODY ASSY, INJECTI

A6:COLD SPEC

021

[01]

09210-01830

PUMP ASSY, FUEL FE

22570-1290A HINO

022

[01]

09039-10040

CLIP, CORD

FOR FULL-LOAD

22323-1190A HINO

023

[01]

09130-02270

GOVERNOR ASSY, MEC

R801 COLD SPEC.

Include in ##:

19100-05640 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19100-05640

22010-5380

PUMP ASSY, INJECTI

1910005640

22010-5380

HINO

PUMP ASSY, INJECTI

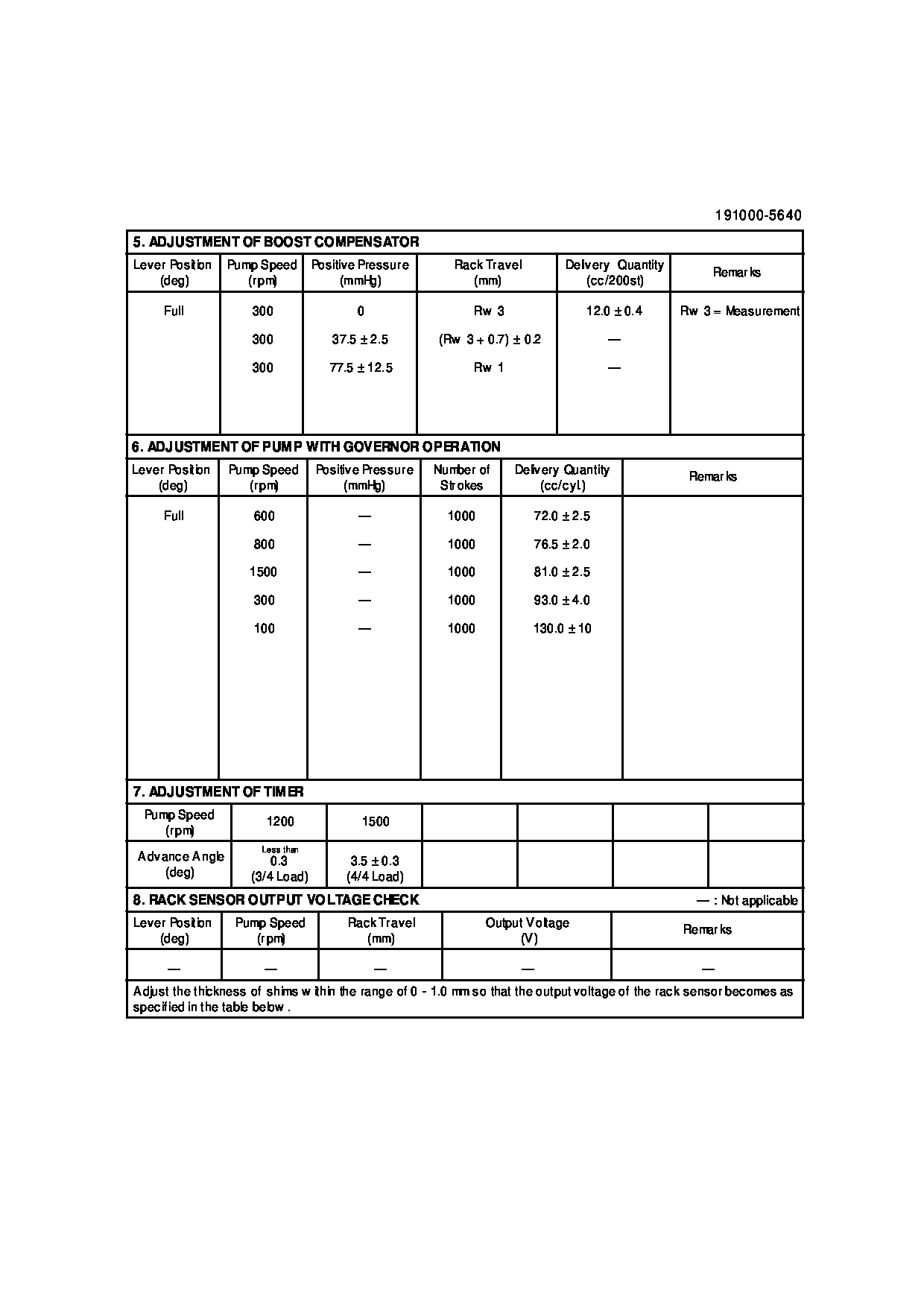

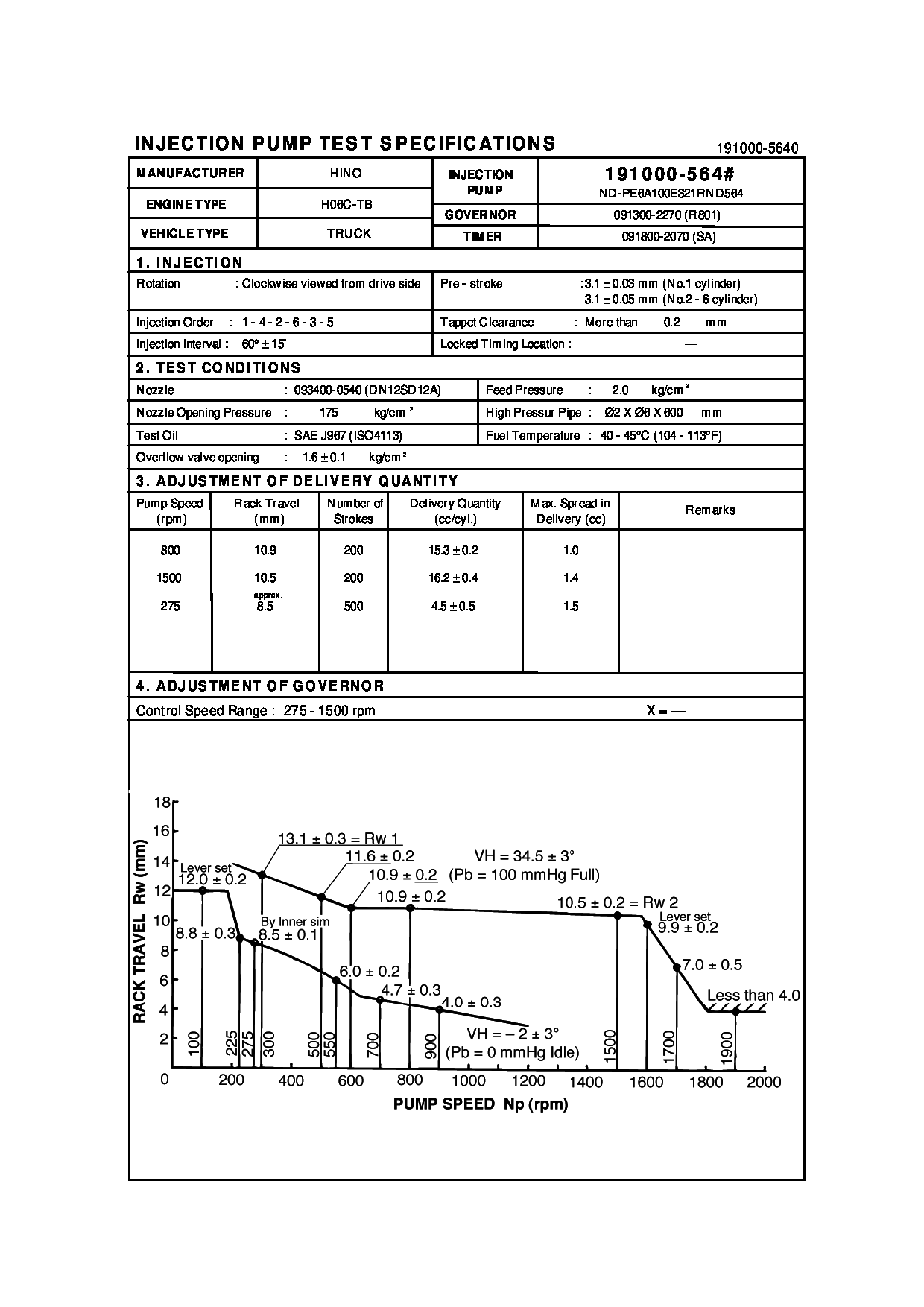

Test Calibration Data:

Get Full test data file

1910005640 22010-5380A
