19100-03670 PUMP ASSY, INJECTI Calibration Data


Rating:
2
Buy PUMP ASSY, INJECTI 19100-03670 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DYNA 13B
Engine
13B
Serial start-end
8609--8706
Info
Injector Nozzle
093500-2890
Injector nozzle: 0935002890

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
A4,R801
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
01.005
PUMP ASSY, FUEL FE
KE

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-03670
PUMP ASSY, INJECTI
A4,R801
22100-58383 TOYOTA
001
[01]
BODY ASSY, INJECTI
A4
22120-58380 TOYOTA
002
[01]
GOVERNOR ASSY, MEC
R801
22410-58343 TOYOTA
003
[01]
PUMP ASSY, FUEL FE
KE
22510-873 TOYOTA
008
[01]
COVER, CONTROL RAC
22116-56230 TOYOTA
009
[01]
SHAFT, SPLINE
22174-58201 TOYOTA
010
[01]
NUT, TIMER ROUND
22611-58200 TOYOTA
011
[01]
WASHER, SPRING
T3.5
90099-01449 TOYOTA
012
[01]
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
013
[01]
CLAMP, HOSE
90929-01132 TOYOTA
016
[01]
BOLT, W/WASHER
M6,L20
90091-20608 TOYOTA
017
[04]
BOLT, W/WASHER
M6,L16
90099-04319 TOYOTA
018
[01]
BOLT, W/WASHER
M6,L12.5
90099-04415 TOYOTA
019
[01]
BOLT, W/WASHER
M8,L18
90099-04346 TOYOTA

Include in ##:

19100-03670 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-03670
22100-5838
PUMP ASSY, INJECTI
1910003670
22100-58383
TOYOTA
PUMP ASSY, INJECTI

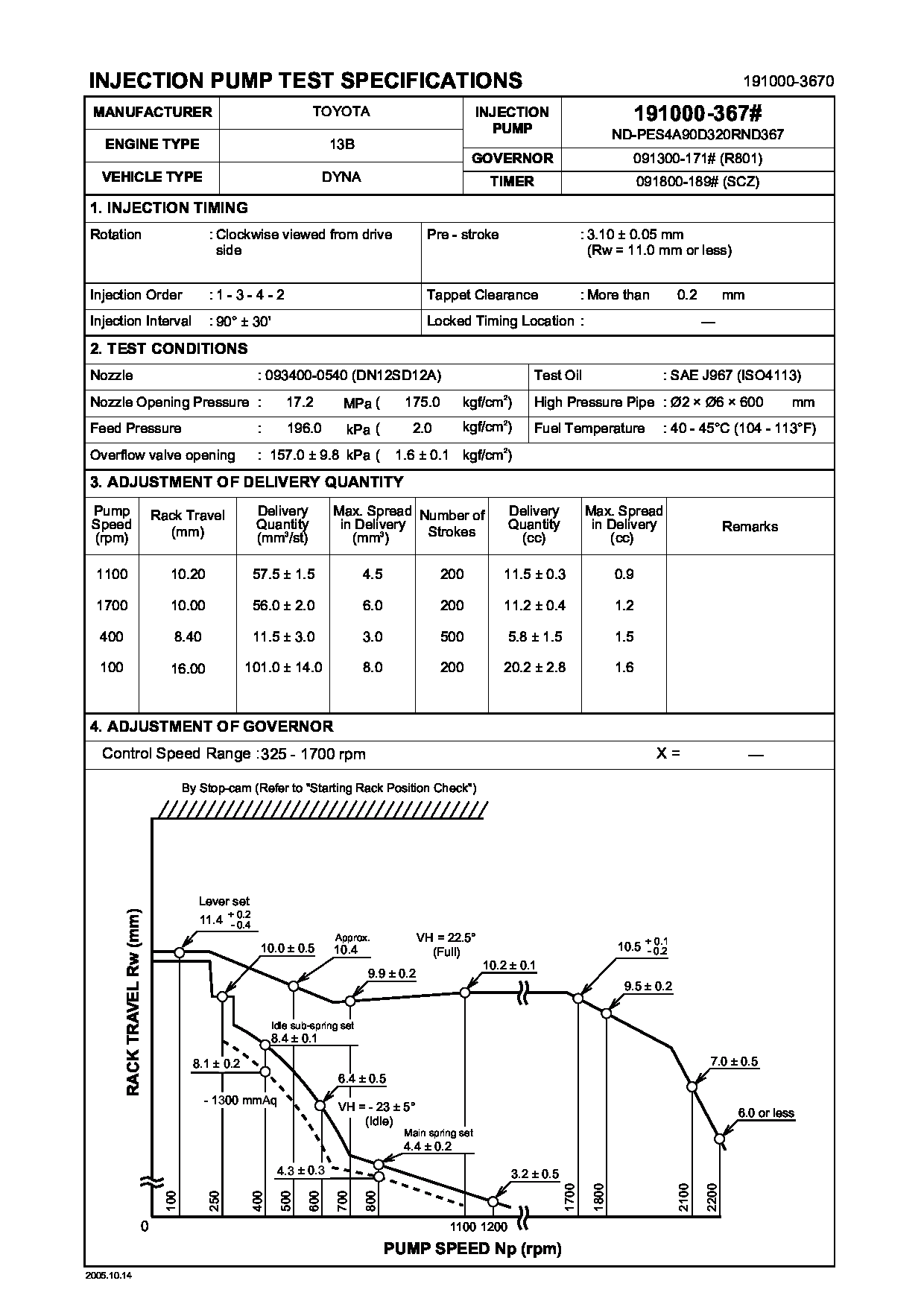

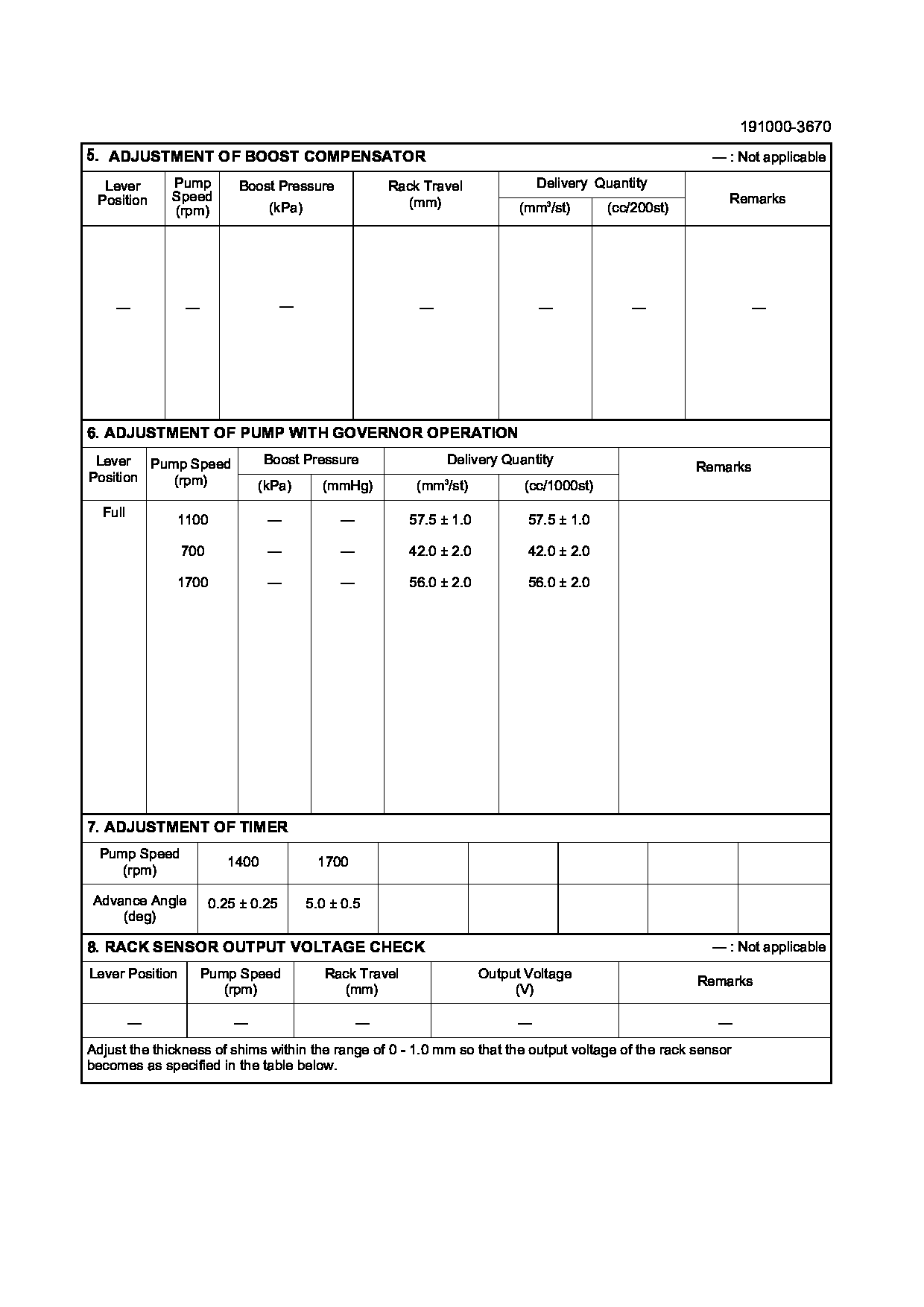

Test Calibration Data:

1910003670 22100-58381
