19100-02321 PUMP ASSY, INJECTI Calibration Data


Rating:
49
Buy PUMP ASSY, INJECTI 19100-02321 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
19100-02321 TOYOTA
A4,R801
01.002
BODY ASSY, INJECTI
09010-06940 TOYOTA
A4
01.003
GOVERNOR ASSY, MEC
09130-01510 TOYOTA
R801
02.004
COVER ASSY, GOVERN
09145-00313 TOYOTA
01.005
PUMP ASSY, FUEL FE
09210-01700 TOYOTA
KE

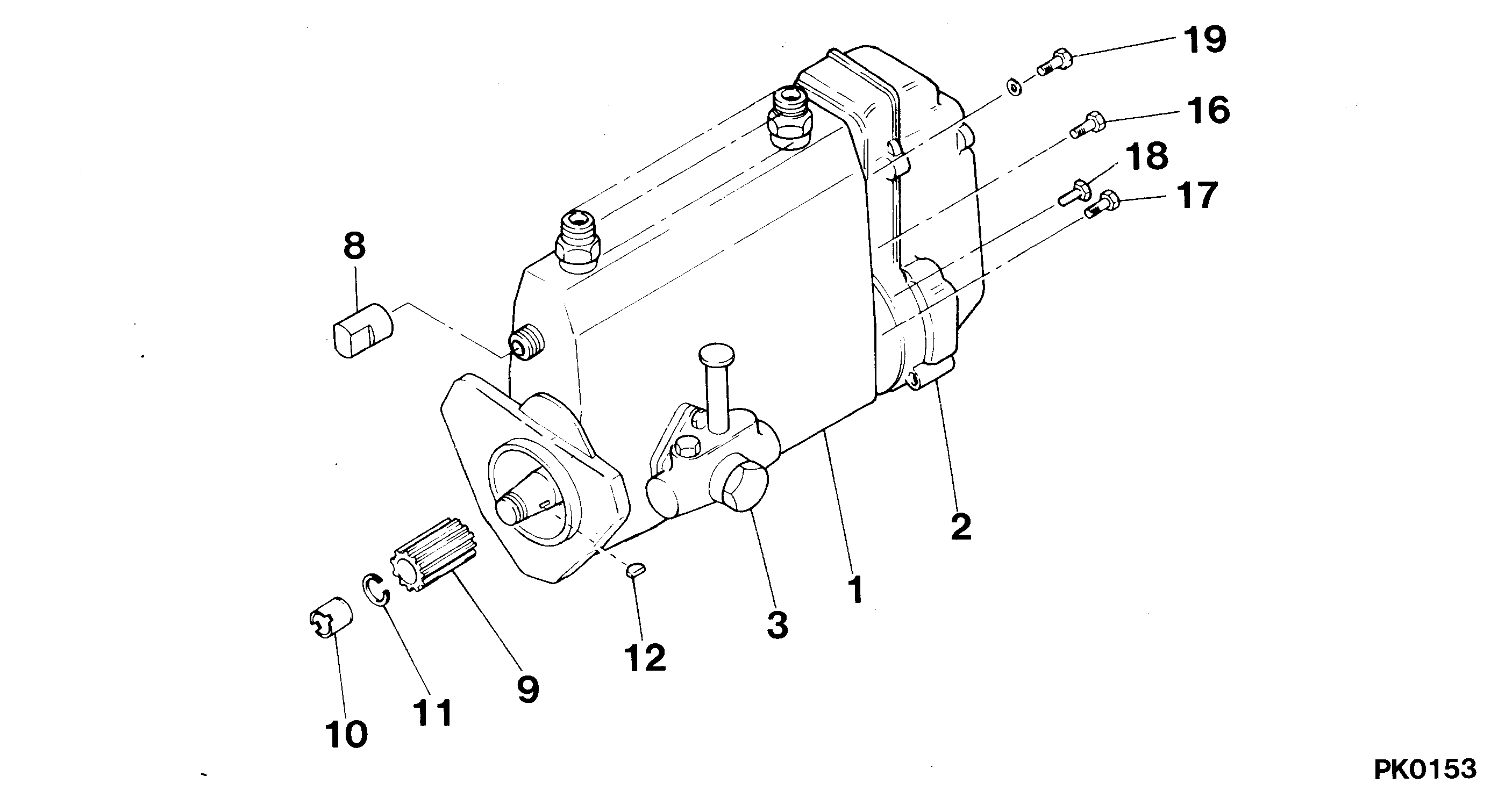

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-02321
PUMP ASSY, INJECTI
A4,R801
22100-58400 TOYOTA
001
[01]
09010-06940
BODY ASSY, INJECTI
A4
22120-58400 TOYOTA
002
[01]
09130-01510
GOVERNOR ASSY, MEC
R801
22410-58360 TOYOTA
003
[01]
09210-01700
PUMP ASSY, FUEL FE
KE
22510-873 TOYOTA
008
[01]
09001-80090
COVER, CONTROL RAC
22116-56230 TOYOTA
009
[01]
09257-50200
SHAFT, SPLINE
22174-58360 TOYOTA
010
[01]
09001-20190
NUT, TIMER ROUND
22611-58200 TOYOTA
011
[01]
94901-50590
WASHER, SPRING
T3.5
90099-01449 TOYOTA
012
[01]
94913-00210
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
016
[01]
91418-06201
BOLT, W/WASHER
M6,L20
90091-20608 TOYOTA
017
[04]
94904-72690
BOLT, W/WASHER
M6,L16
90099-04319 TOYOTA
018
[01]
94904-72990
BOLT, W/WASHER
M6,L11.5
90099-04320 TOYOTA
019
[01]
94904-73910
BOLT, W/WASHER
M8,L18
90099-04346 TOYOTA

Include in ##:

19100-02321 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-02321
22100-5840
PUMP ASSY, INJECTI

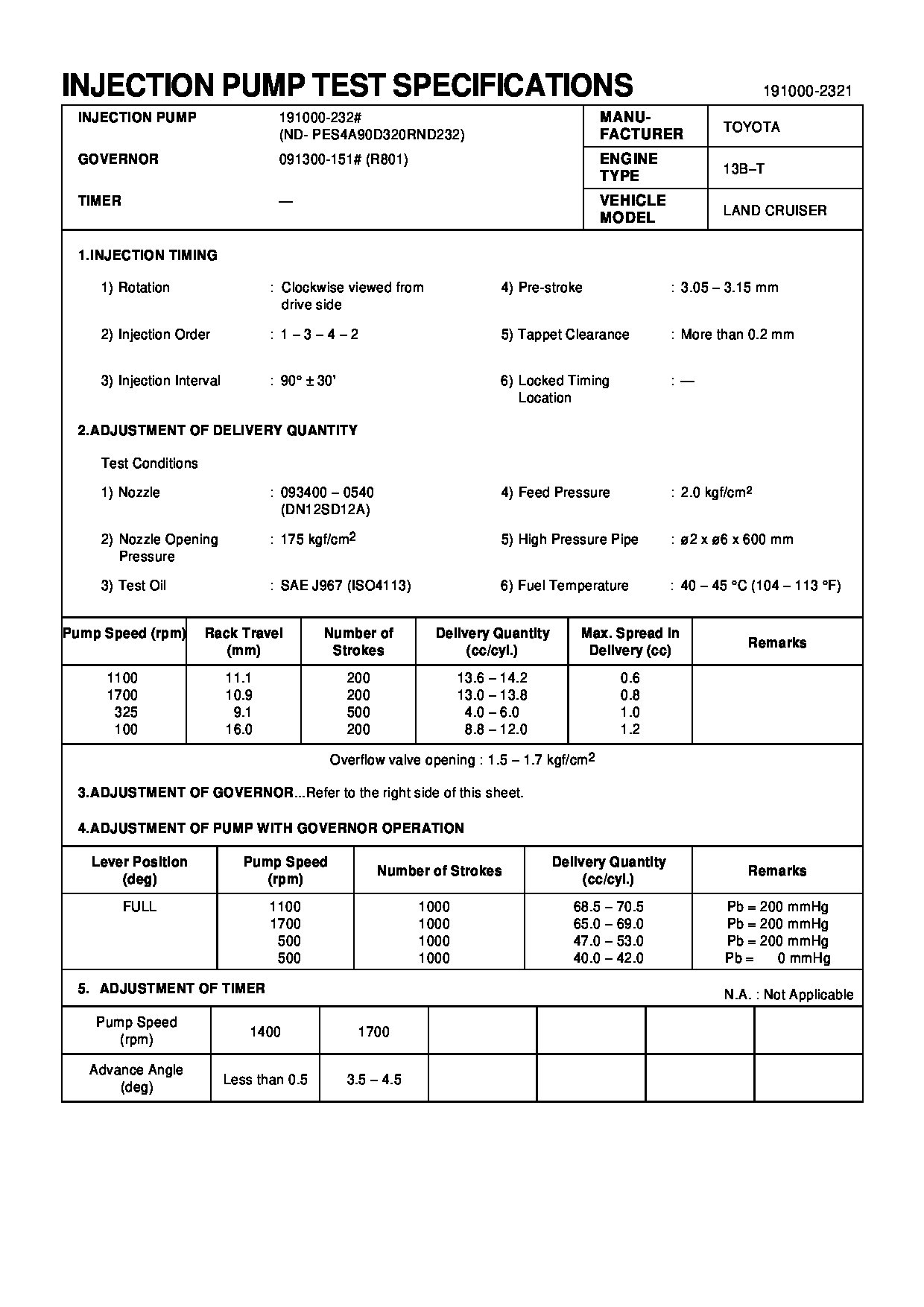

Test Calibration Data:

Get Full test data file
1910002321 22100-58400
EC2321
EC2321
