19100-01580 PUMP ASSY, INJECTI Calibration Data


Rating:
31
Buy PUMP ASSY, INJECTI 19100-01580 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
TRUCK EF550
Engine
EF550
Serial start-end
8509--8911
Info
Injector Nozzle
093500-2680
Injector nozzle: 0935002680

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Timer assy, automa
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
P8,R722
01.002
BODY ASSY, INJECTI
P8
02.003
COVER, BEARING
DUMMY
01.004
TIMER ASSY, AUTOMA
SP -9305
01.004
TIMER ASSY, AUTOMA
SP 9305-
01.005
PUMP ASSY, FUEL FE
KD22
01.006
COUPLING ASSY
01.007
GOVERNOR ASSY, MEC

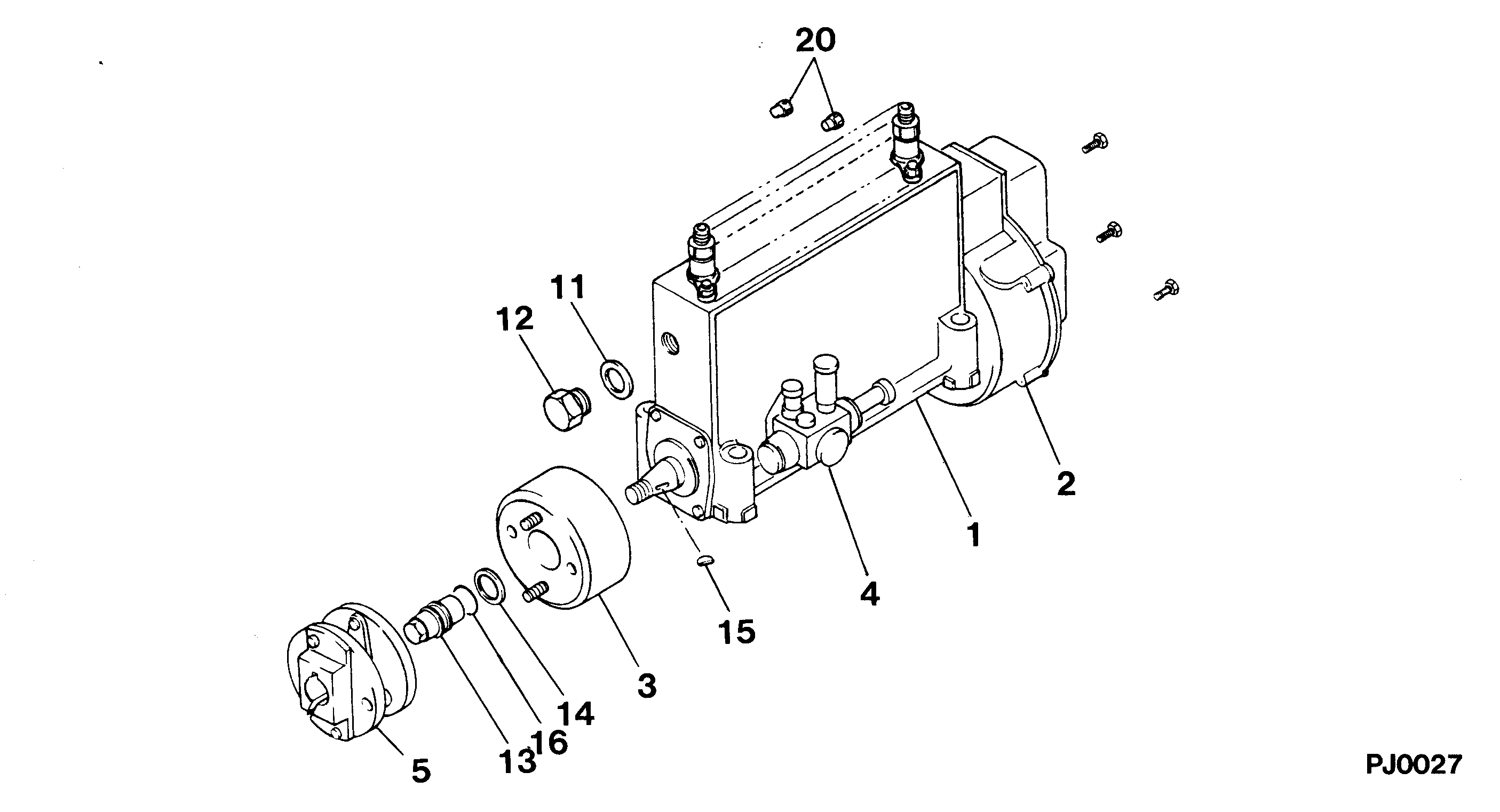

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19100-01580
PUMP ASSY, INJECTI
P8,R722
22010-4470 HINO
001
[01]
BODY ASSY, INJECTI
P8
22110-2140A HINO
002
[01]
GOVERNOR ASSY, MEC
R722
22310-3100A HINO
003
[01]
TIMER ASSY, AUTOMA
SP
22510-1610A HINO
004
[01]
PUMP ASSY, FUEL FE
KD
22570-1330A HINO
005
[01]
COUPLING ASSY
KD
22610-1471A HINO
011
[01]
WASHER, COPPER PLA
T2
22863-1300A HINO
012
[01]
COVER, CONTROL RAC
22372-1140A HINO
013
[01]
NUT, TIMER ROUND
22825-1110A HINO
014
[01]
WASHER, COUNTERSUN
T1.5ID18
22877-1190A HINO
015
[01]
KEY, WOODRUFF
W5,H7.5
22891-1070A HINO
016
[01]
O-RING
ID27.7
22817-1050A HINO
020
[02]
CAP
FOR MAX.SPEED
22323-1210A HINO

Include in ##:

19100-01580 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19100-01580
22010-4470
PUMP ASSY, INJECTI
1910001580
22010-4470
HINO
PUMP ASSY, INJECTI

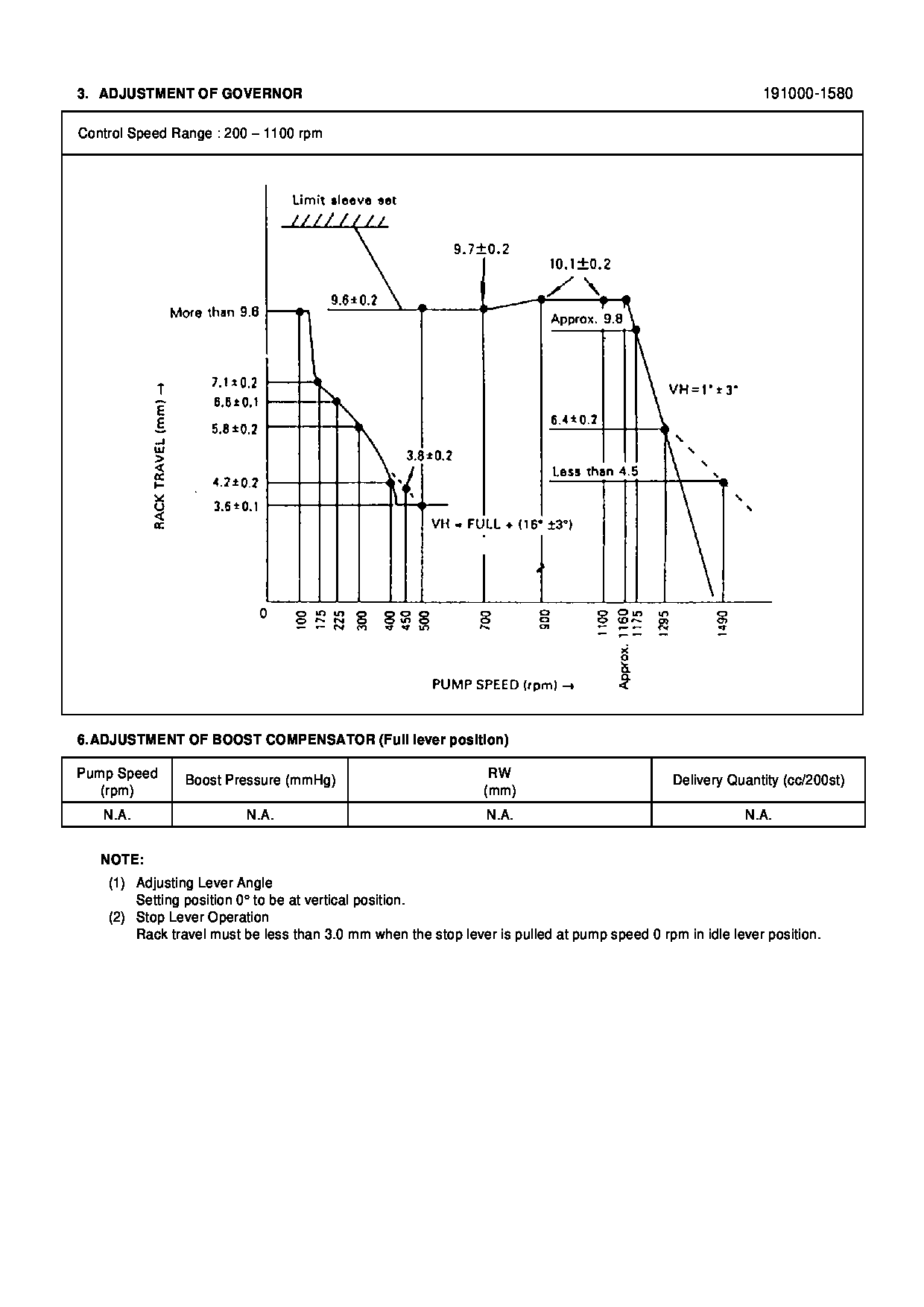

Test Calibration Data:

1910001580 22010-4470A
