Buy 19000-08520 PUMP ASSY, INJECTI Calibration Data


Rating:
7
Buy PUMP ASSY, INJECTI 19000-08520 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
DYNA 13B
Engine
13B
Serial start-end
8406--8604
Info
Injector Nozzle
093500-2890
Injector nozzle: 0935002890

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Governor assy, mec
Pump assy, fuel fe
Pump assy, fuel fe

Compare Prices: .

As an associate, we earn commssions on qualifying purchases through the links below
$160.66


21 Oct 2021

US: Simple Tire
Leao Lion Sport HP P275/55R17 109V All Season Radial Tire
LEAO All Season Tire || Speed rating: V || Load index: 109.0 || Load capacity: 1925

Components :

00.001
PUMP ASSY, INJECTI
A4,R801
01.002
BODY ASSY, INJECTI
A4
01.003
GOVERNOR ASSY, MEC
R801
02.004
COVER ASSY, GOVERN
01.005
PUMP ASSY, FUEL FE
KE
01.005
PUMP ASSY, FUEL FE
KE22
01.006
PUMP ASSY, FUEL FE
KE

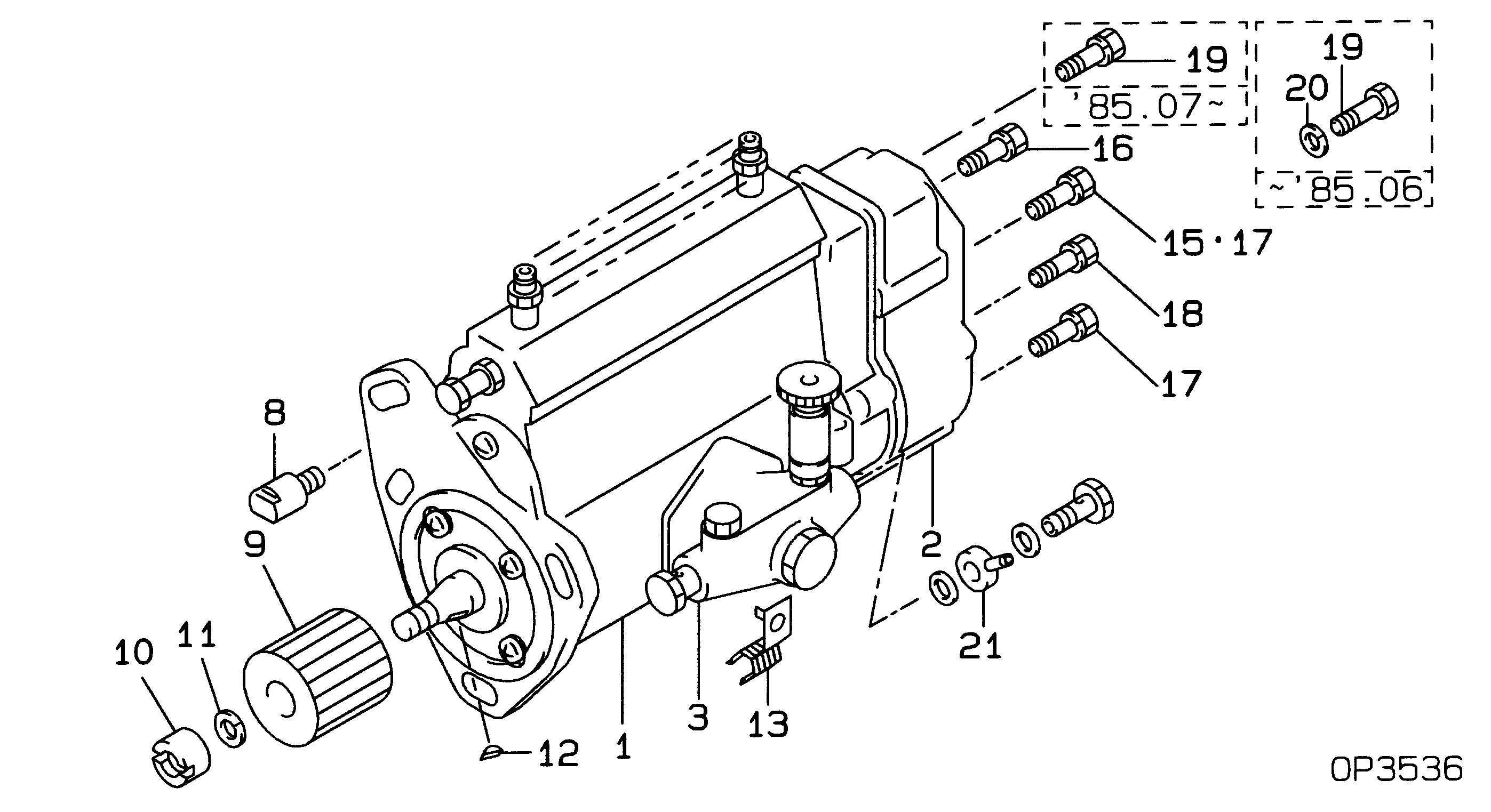

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19000-08520
PUMP ASSY, INJECTI
A4,R801
22100-58290 TOYOTA
001
[01]
BODY ASSY, INJECTI
A4
22120-58290 TOYOTA
002
[01]
GOVERNOR ASSY, MEC
R801
22410-58230 TOYOTA
003
[01]
PUMP ASSY, FUEL FE
KE -8406
22510-56040 TOYOTA
003
[01]
PUMP ASSY, FUEL FE
KE 8406-
22510-873 TOYOTA
008
[01]
COVER, CONTROL RAC
-8411
63031-20061 TOYOTA
008
[01]
COVER, CONTROL RAC
8411-
22116-56230 TOYOTA
009
[01]
SHAFT, SPLINE
-8507
22174-58200 TOYOTA
009
[01]
SHAFT, SPLINE
8507-
22174-58201 TOYOTA
010
[01]
NUT, TIMER ROUND
22611-58200 TOYOTA
011
[01]
WASHER, SPRING
T3.5
90099-01449 TOYOTA
012
[01]
KEY, WOODRUFF
T3.985
90099-13023 TOYOTA
013
[01]
CLAMP, HOSE
90929-01132 TOYOTA
015
[01]
BOLT, W/WASHER
M6,L16 -8403
90091-20614 TOYOTA
016
[01]
BOLT, W/WASHER
M6,L20
90091-20608 TOYOTA
017
[03]
BOLT, W/WASHER
M6,L16 -8403
90099-04319 TOYOTA
017
[04]
BOLT, W/WASHER
M6,L16 8404-
90099-04319 TOYOTA
018
[01]
BOLT, W/WASHER
M6,L11.5
90099-04320 TOYOTA
019
[01]
BOLT, HEXAGON
M8,L18 -8506
90031-01132 TOYOTA
019
[01]
BOLT, W/WASHER
M8,L18 8507-
90099-04346 TOYOTA
020
[01]
WASHER, SPRING
FOR M8 -8506
94511-00800 TOYOTA
021
[01]
NIPPLE
-8506
23323-56020 TOYOTA

Include in ##:

19000-08520 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19000-08520
22100-5829
PUMP ASSY, INJECTI
1900008520
22100-58290
TOYOTA
PUMP ASSY, INJECTI

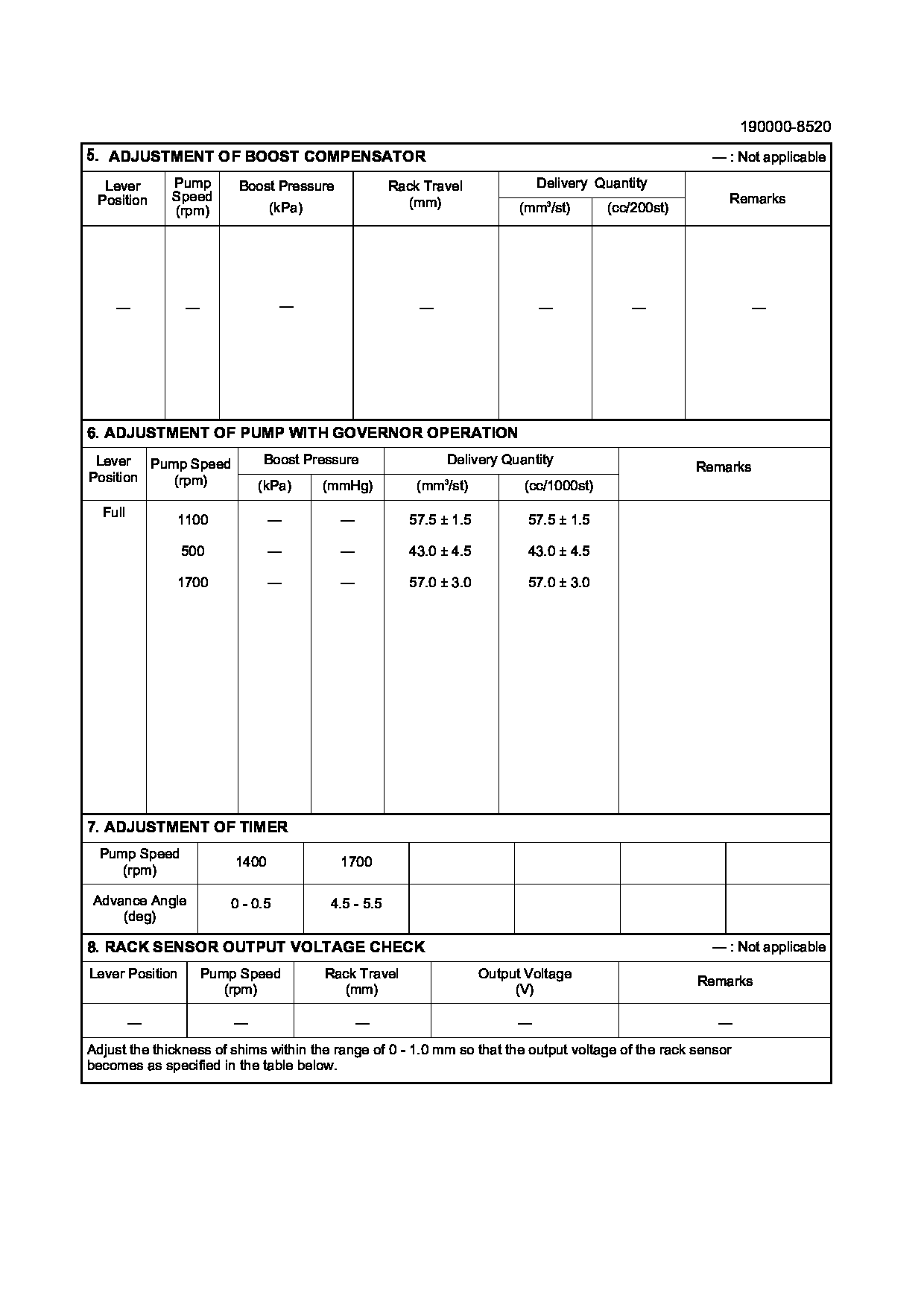

Test Calibration Data:

1900008520 22100-58290
