19000-08510 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19000-08510 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

DYNA 13B

Engine

13B

Serial start-end

8308--8604

Info

Injector Nozzle

093500-2890

Injector nozzle: 0935002890

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

Governor assy, mec

Pump assy, fuel fe

Pump assy, fuel fe

Components :

00.001

PUMP ASSY, INJECTI

19000-08510 TOYOTA

A4,R801

01.002

BODY ASSY, INJECTI

09010-05690 TOYOTA

01.003

GOVERNOR ASSY, MEC

09130-00780 TOYOTA

R801

02.004

COVER ASSY, GOVERN

09145-00232 TOYOTA

01.005

PUMP ASSY, FUEL FE

09210-01101 TOYOTA

01.005

PUMP ASSY, FUEL FE

09210-01101 TOYOTA

KE22

01.006

PUMP ASSY, FUEL FE

09210-01700 TOYOTA

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19000-08510

PUMP ASSY, INJECTI

A4,R801

22100-58260 TOYOTA

001

[01]

09010-05690

BODY ASSY, INJECTI

22120-58230 TOYOTA

002

[01]

09130-00780

GOVERNOR ASSY, MEC

R801

22410-58230 TOYOTA

003

[01]

09210-01101

PUMP ASSY, FUEL FE

KE -8406

22510-56040 TOYOTA

003

[01]

09210-01700

PUMP ASSY, FUEL FE

KE 8406-

22510-873 TOYOTA

008

[01]

09001-80220

COVER, CONTROL RAC

-8411

63031-20061 TOYOTA

008

[01]

09001-80090

COVER, CONTROL RAC

8411-

22116-56230 TOYOTA

009

[01]

09257-50150

SHAFT, SPLINE

-8507

22174-58200 TOYOTA

009

[01]

09257-50170

SHAFT, SPLINE

8507-

22174-58201 TOYOTA

010

[01]

09001-20190

NUT, TIMER ROUND

22611-58200 TOYOTA

011

[01]

94901-50590

WASHER, SPRING

T3.5

90099-01449 TOYOTA

012

[01]

94913-00210

KEY, WOODRUFF

T3.985

90099-13023 TOYOTA

013

[01]

09048-10030

CLAMP, HOSE

9806-

90929-01132 TOYOTA

015

[01]

91418-06161

BOLT, W/WASHER

M6,L16 -8403

90091-20614 TOYOTA

016

[01]

91418-06201

BOLT, W/WASHER

M6,L20

90091-20608 TOYOTA

017

[03]

94904-72690

BOLT, W/WASHER

M6,L16 -8403

90099-04319 TOYOTA

017

[04]

94904-72690

BOLT, W/WASHER

M6,L16 8404-

90099-04319 TOYOTA

018

[01]

94904-72990

BOLT, W/WASHER

M6,L11.5

90099-04320 TOYOTA

019

[01]

94904-04300

BOLT, HEXAGON

M8,L18 -8506

90031-01132 TOYOTA

019

[01]

94904-73910

BOLT, W/WASHER

M8,L18 8507-

90099-04346 TOYOTA

020

[01]

90258-08001

WASHER, SPRING

FOR M8 -8506

94511-00800 TOYOTA

021

[01]

08601-30120

NIPPLE

-8506

23323-56020 TOYOTA

022

[01]

09003-80030

COVER, NIPPLE

-8506

Include in ##:

19000-08510 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19000-08510

22100-5826

PUMP ASSY, INJECTI

1900008510

22100-58260

TOYOTA

PUMP ASSY, INJECTI

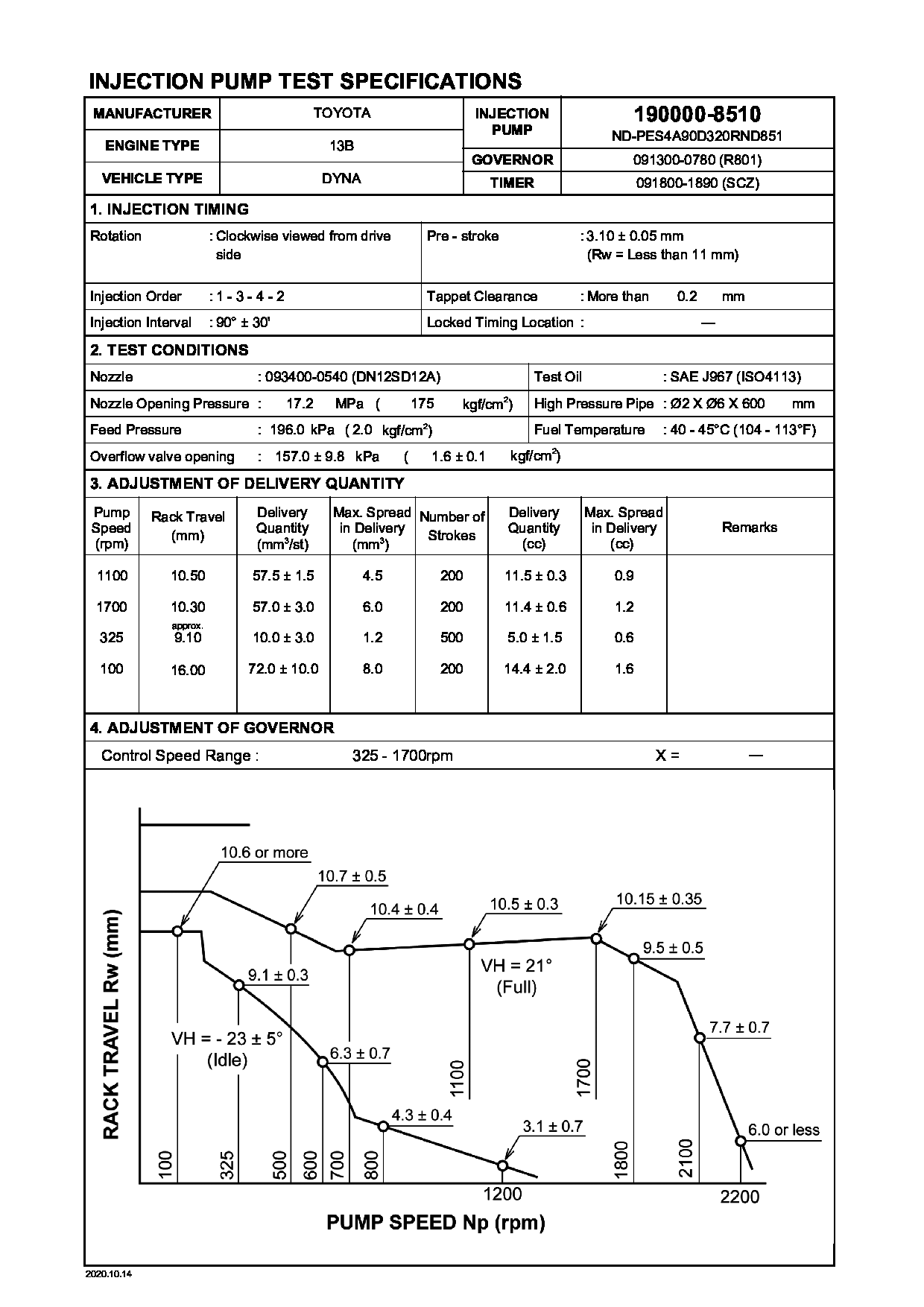

Test Calibration Data:

Get Full test data file

1900008510 22100-58260

19000-08510 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

KIT List:

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:
