19000-00513 PUMP ASSY, INJECTI Calibration Data Denso

Information Cross number Test Calibration Data Calibration Data Ex

Buy now

Add to cart Go to cart

Rating:

Buy PUMP ASSY, INJECTI 19000-00513 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001

PUMP ASSY, INJECTI

19000-00513 MITSUI-DEUTZ

A5,RSV

01.002

BODY ASSY, INJECTI

09010-03190 MITSUI-DEUTZ

01.003

GOVERNOR ASSY, MEC

09080-04324 MITSUI-DEUTZ

RSV

01.004

GOVERNOR ASSY, MEC

09080-04582 MITSUI-DEUTZ

RSV

01.005

PUMP ASSY, FUEL FE

09210-00073 MITSUI-DEUTZ

KS22

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19000-00513

PUMP ASSY, INJECTI

A5,RSV

004

[01]

94918-00310

SCREW, HOLLOW

008

[01]

09080-04582

GOVERNOR ASSY, MEC

RSV -8308

008

[01]

09080-04324

GOVERNOR ASSY, MEC

RSV 8308-

009

[01]

09210-00073

PUMP ASSY, FUEL FE

KS22

010

[01]

09010-03190

BODY ASSY, INJECTI

011

[01]

94905-02450

NUT, HEXAGON

M12

012

[01]

94901-50500

WASHER, SPRING

T2.5

013

[01]

94913-00190

KEY, WOODRUFF

015

[01]

09001-80140

COVER, CONTROL RAC

016

[01]

94901-81020

WASHER, COPPER PLA

017

[04]

09022-20011

WASHER, FUEL PIPE

-9410

017

[04]

09022-20070

WASHER, FUEL PIPE

ID13.8 9411-

018

[01]

09031-00011

VALVE ASSY, OVERFL

1.8K

019

[01]

09024-40080

SCREW, AIR BLEEDER

020

[06]

91518-06161

BOLT, W/WASHER

M6,L16

021

[01]

91518-08221

BOLT, W/WASHER

M8,L22

Include in ##:

19000-00513 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

19000-00513

PUMP ASSY, INJECTI

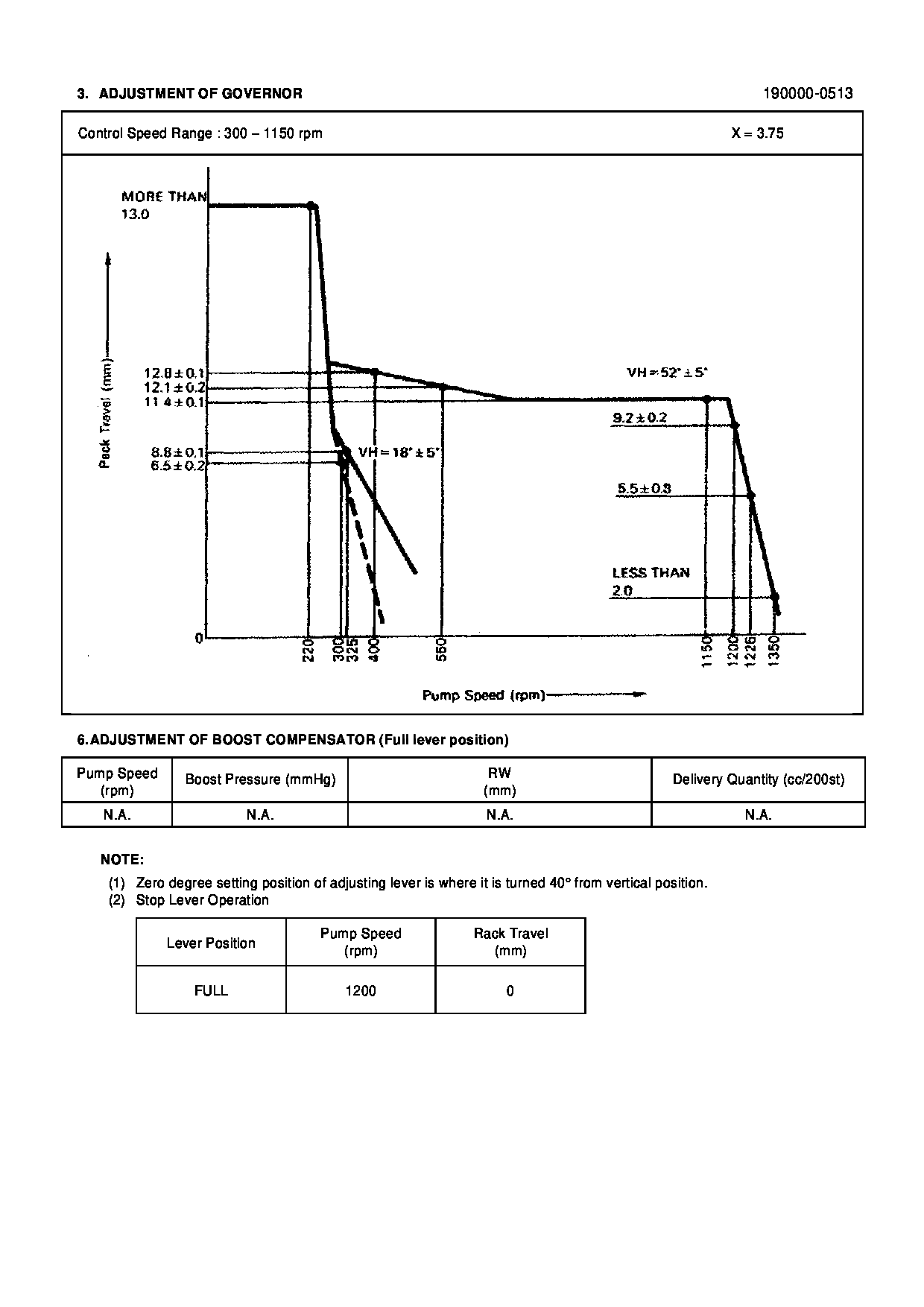

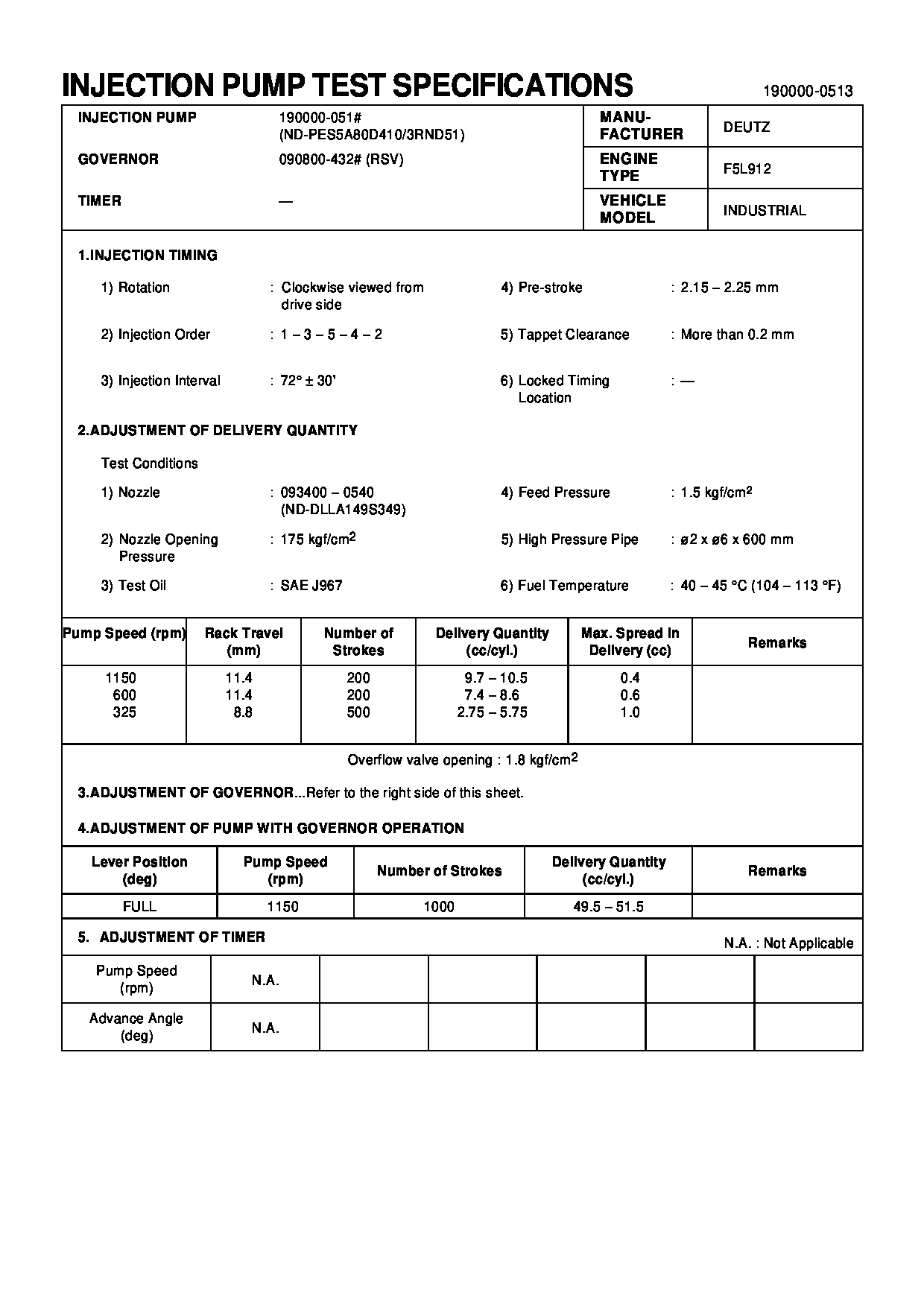

Test Calibration Data:

Get Full test data file

1900000513 1707625

19000-00513 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:

Have questions with 19000-00513?

Group cross 19000-00513
