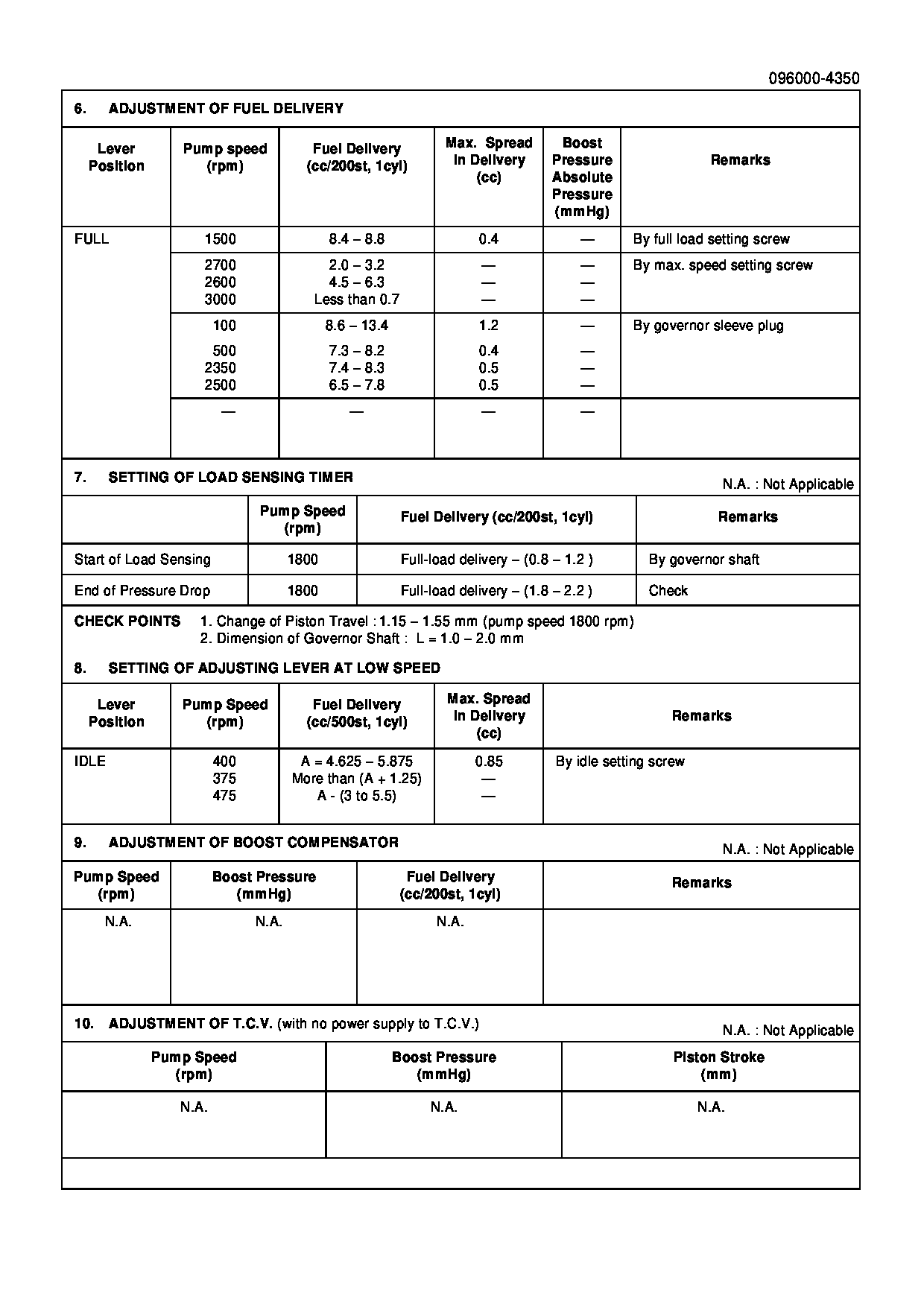

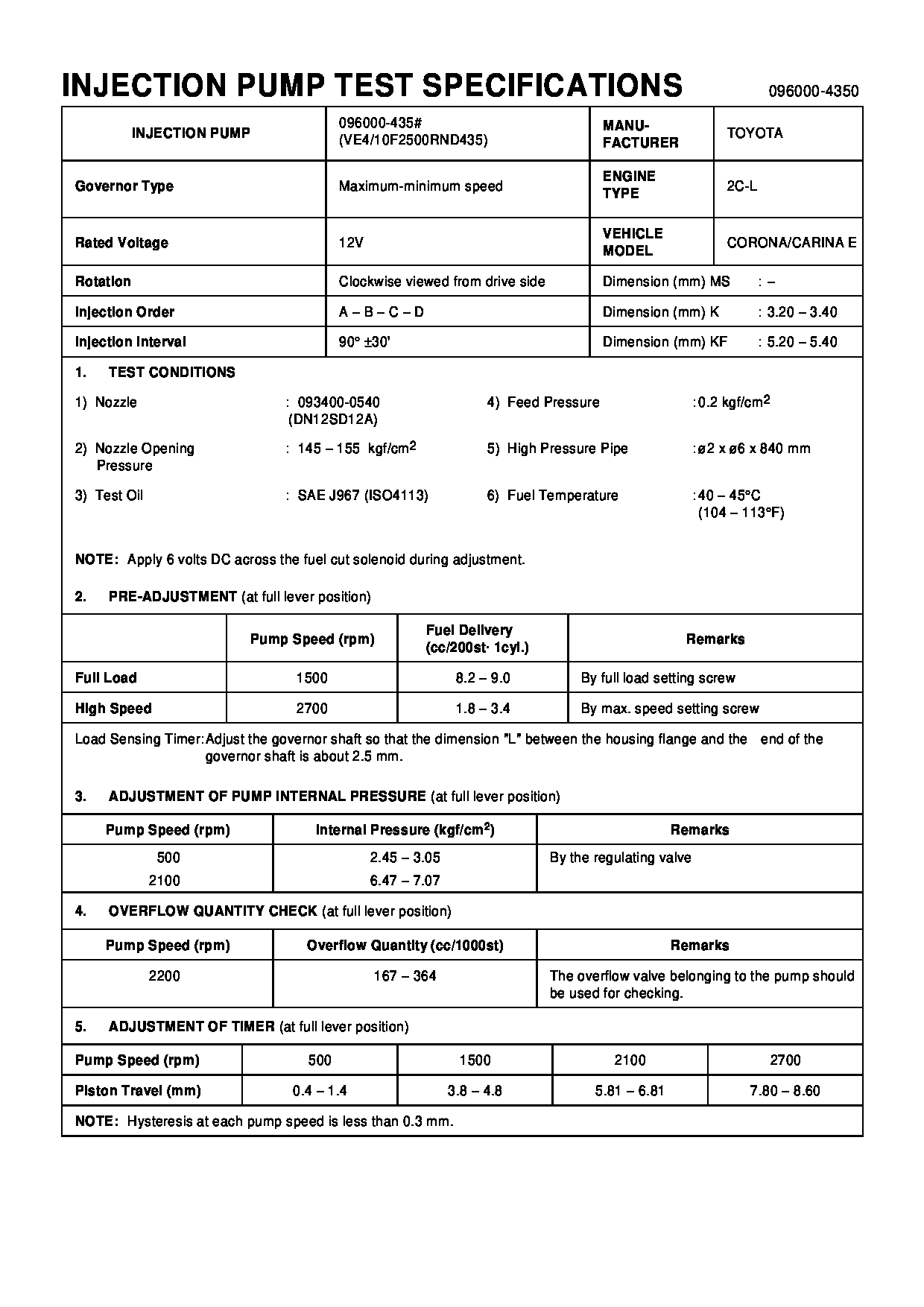

09600-04350 TOYOTA PUMP ASSY, INJECTI Calibration Data


Rating:
18
Buy PUMP ASSY, INJECTI 09600-04350 TOYOTA genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
CARINA 2C-L
Engine
2C-L
Serial start-end
8712--9106
Info
Injector Nozzle
093500-3650
Manufacture:
22100-6A560 TOYOTA
Dim 1
3.2-3.4
Dim 2
5.2-5.4
Dim 3
-
Dim 4
Dim 5
Dim 6
Information
TOYOTA PUMP ASSY, INJECTI AA
  • *1 NEW PARTS ARE INTERCHANGEABLE WITH OLD ONE, IF
  • NO.109 AND 113 ARE CHANGED AT THE SAME TIME.
Injector nozzle: 0935003650

KIT List:

Part name
Kit1
Kit2
Pump assy, injecti

Components :

00.001
PUMP ASSY, INJECTI
01.002
RING SUB-ASSY, ROL
01.003
COVER SUB-ASSY, TI
01.004
COVER SUB-ASSY, TI
01.005
GOVERNOR ASSY, TOR
01.006
SHIM, PLUNGER ADJU
DUMMY
01.006
SHIM, PLUNGER ADJU
T1.9(*1)
01.007
COVER SUB-ASSY, GO

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09600-04350
PUMP ASSY, INJECTI
22100-6A560 TOYOTA
001
[01]
HOUSING SUB-ASSY,
22101-64020 TOYOTA
002
[01]
HEAD SUB-ASSY, DIS
22140-6A511 TOYOTA
003
[01]
COVER SUB-ASSY, GO
-8801
22703-6A360 TOYOTA
003
[01]
COVER SUB-ASSY, GO
8801-
22703-6A361 TOYOTA
004
[01]
SHAFT, DRIVE
22170-6A510 TOYOTA
005
[01]
RING SUB-ASSY, ROL
22108-54180 TOYOTA
006
[01]
PUMP SUB-ASSY, FUE
22505-54010 TOYOTA
007
[01]
GOVERNOR ASSY, TOR
22350-64010 TOYOTA
008
[01]
SHAFT SUB-ASSY, SP
-8801
22302-6A510 TOYOTA
008
[01]
SHAFT SUB-ASSY, SP
8801-
22302-6A511 TOYOTA
009
[01]
SOLENOID ASSY, FUE
22390-6A510 TOYOTA
009-001
[01]
O-RING
010
[01]
HOLDER SUB-ASSY, F
22741-54020 TOYOTA
011
[04]
FLYWEIGHT, DISTRIB
22745-54010 TOYOTA
012
[01]
SLEEVE, GOVERNOR
D0.90 -8805
22316-54351 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D0.75 8805-
22316-54360 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D0.80 8805-
22316-6A041 TOYOTA
012
[1C]
SLEEVE, GOVERNOR
D1.10 9008-
22316-6A740 TOYOTA
013
[01]
WASHER, FLYWEIGHT
22753-54290 TOYOTA
015
[01]
WASHER, FLYWEIGHT
T1.30
22753-54010 TOYOTA
016
[01]
NUT, GOVERNOR SHAF
M10,L SCREW
22722-54470 TOYOTA
017
[01]
SHAFT SUB-ASSY, GO
22380-54020 TOYOTA
018
[01]
O-RING
ID 8
90099-14049 TOYOTA
019
[09]
BOLT, W/WASHER
-8807
90091-20611 TOYOTA
019
[09]
BOLT, SOCKET
M6,L16 8807-
22395-56351 TOYOTA
020
[01]
RING, GOVERNOR SLE
22147-54290 TOYOTA
021
[04]
VALVE SUB-ASSY, SN
-8908
22190-64740 TOYOTA
021
[04]
VALVE SUB-ASSY, SN
8908--9004
22190-18040 TOYOTA
021
[04]
VALVE SUB-ASSY, SN
9005-
22190-6A680 TOYOTA
022
[04]
VALVE SUB-ASSY, DI
-9004
22104-64010 TOYOTA
022
[04]
VALVE SUB-ASSY, DI
9005-
22104-6A290 TOYOTA
023
[04]
SPRING, DELIVERY V
22148-54010 TOYOTA
024
[04]
GASKET, DELIVERY V
-9004
22149-54010 TOYOTA
024
[04]
GASKET, DELIVERY V
9005-
22149-56351 TOYOTA
026
[01]
CAMPLATE SUB-ASSY,
-9109
22130-6A510 TOYOTA
026
[01]
CAMPLATE SUB-ASSY,
9109-
22130-6D340 TOYOTA
027
[01]
NUT, HEXAGON, W/ H
90099-05140 TOYOTA
028
[01]
PLATE, PLUNGER, LW
22163-54010 TOYOTA
029
[01]
PLATE, PLUNGER, UP
22162-54010 TOYOTA
030
[01]
SPRING, COUPLING
22659-64150 TOYOTA
031
[01]
COUPLING
22632-54010 TOYOTA
032
[01]
GEAR, GOVERNOR DRI
22341-54010 TOYOTA
033
[02]
JOINT, RUBBER
22169-54180 TOYOTA
034
[01]
WASHER, DRIVE SHAF
22161-54010 TOYOTA
035
[01]
COVER, FEED PUMP
22511-54020 TOYOTA
036
[01]
KEY, WOODRUFF
90099-13017 TOYOTA
037
[01]
KEY, WOODRUFF
90099-13018 TOYOTA
038
[01]
NUT
M14
90099-05166 TOYOTA
040
[01]
SEAL, 0IL
22544-64740 TOYOTA
041
[01]
PISTON, TIMER
22654-55050 TOYOTA
042
[01]
SUB-PISTON, TIMER
22657-54010 TOYOTA
043
[01]
PIN, TIMER SLIDE
22655-54010 TOYOTA
044
[01]
STOPPER, TIMER SLI
22658-54010 TOYOTA
045
[01]
CLIP, TIMER
22656-54010 TOYOTA
046
[01]
COVER SUB-ASSY, TI
22790-6A220 TOYOTA
046-001
[01]
COVER, TIMER
22612-54450 TOYOTA
046-002
[01]
STOPPER, TIMER SLI
22658-54450 TOYOTA
046-003
[01]
O-RING
22193-64750 TOYOTA
046-004
[01]
NUT, HEXAGON
90099-05225 TOYOTA
047
[01]
COVER, TIMER
22612-54010 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K3.6 -8805
22615-54413 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K2.5 8805-
22615-54490 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K3.3 -8805
22615-64010 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K2.8 8805-
22615-5B010 TOYOTA
048
[1C]
SPRING, TIMER, OUT
K3.0
22615-54180 TOYOTA
050
[03]
O-RING
ID26.3 -9310
90099-14051 TOYOTA
050
[03]
O-RING
ID26.3 9311-
90099-14105 TOYOTA
051
[01]
PLUG, DISTRIBUTIVE
22176-54020 TOYOTA
052
[01]
BOLT, DISTRIBUTIVE
22128-54010 TOYOTA
053
[03]
GASKET, DELIVERY V
ID8.2,T1
22149-56200 TOYOTA
054
[01]
O-RING
ID30
90099-14052 TOYOTA
055
[01]
SHEET, PLUNGER SPR
22145-54010 TOYOTA
056
[02]
GUIDE SUB-ASSY, PL
22192-54010 TOYOTA
057
[02]
SPRING, PLUNGER
K10
22144-54190 TOYOTA
058
[02]
SHEET, PLUNGER SPR
22143-54010 TOYOTA
060
[01]
O-RING
ID60
90099-14053 TOYOTA
062
[02]
SPRING, LEVER SUPP
K1.03
22314-54010 TOYOTA
063
[01]
SCREW, SMOKE SET
22776-54110 TOYOTA
064
[01]
NUT, HEXAGON
M6,L5
90092-10101 TOYOTA
065
[01]
WASHER, PLATE
90093-00802 TOYOTA
066
[01]
O-RING
90099-14047 TOYOTA
067
[04]
BOLT, SOCKET
M6,L35
22395-54010 TOYOTA
070
[01]
SCREW SUB-ASSY, OV
22160-64010 TOYOTA
071
[05]
WASHER, AIR BLEEDE
22119-77020 TOYOTA
072
[01]
SPRING, RETURN
22322-6A280 TOYOTA
073
[02]
SCREW, COUNTERSUNK
M4,L28
90099-00723 TOYOTA
074
[01]
WASHER, SNAP
22365-54040 TOYOTA
075
[01]
O-RING
90099-14048 TOYOTA
077
[01]
WASHER, SPRING
-8807
94511-00600 TOYOTA
078
[1C]
LEVER SUB-ASSY, AD
ANGLE 14
22701-6A370 TOYOTA
078
[1C]
LEVER SUB-ASSY, AD
ANGLE 21.5
22701-6A371 TOYOTA
079
[01]
SPRING, RETURN
22322-64740 TOYOTA
081
[01]
GASKET, GOVERNOR C
22774-54010 TOYOTA
082
[01]
VALVE SUB-ASSY, RE
K1.53
22180-54010 TOYOTA
082-001
[01]
O-RING
22193-54561 TOYOTA
082-002
[01]
O-RING
90099-14080 TOYOTA
084
[01]
NUT, LOCK
22775-77121 TOYOTA
085
[01]
SCREW, HOLLOW
M12,L43.5
90099-18022 TOYOTA
086
[02]
BOLT, GOVERNOR LIN
22739-54020 TOYOTA
087
[01]
NUT, CAP
M12
90099-05161 TOYOTA
088
[04]
BOLT, SOCKET
M6,L45
22395-58200 TOYOTA
091
[01]
WASHER, GOVERNOR T
T0.5
22378-64010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.5
22182-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.8
22183-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.0
22184-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.2
22185-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.5
22186-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.8
22187-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T2.0
22188-54010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T0.9
22182-17010 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.1
22182-17011 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.3
22182-17012 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.4
22182-17013 TOYOTA
092
[2C]
SHIM, PLUNGER SPRI
T1.6
093
[1C]
WASHER, GOVERNOR G
T1.05
22713-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.25
22714-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.45
22715-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.65
22716-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.85
22717-54010 TOYOTA
093
[1C]
WASHER, GOVERNOR G
T1.55
093
[1C]
WASHER, GOVERNOR G
T1.75
093
[1C]
WASHER, GOVERNOR G
T2.05
093
[1C]
WASHER, GOVERNOR G
T1.3
093
[1C]
WASHER, GOVERNOR G
T1.4
093
[1C]
WASHER, GOVERNOR G
T1.5
093
[1C]
WASHER, GOVERNOR G
T1.6
094
[1C]
PLUG, GOVERNOR SLE
L3.0
22787-64641 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.1
22787-64642 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.2
22787-64643 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.3
22787-54026 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L3.4
22787-54027 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.2
22787-64660 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.3
22787-64661 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.4
22787-64662 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.5
22787-64663 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.6
22787-64664 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.7
22787-64665 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.8
22787-64666 TOYOTA
094
[1C]
PLUG, GOVERNOR SLE
L2.9
22787-64667 TOYOTA
095
[01]
WASHER, TIMER SENS
T0.5
22625-54272 TOYOTA
096
[01]
COLLAR, SMOKE SET
ID7.9,L8
097
[1C]
SHIM, PLUNGER ADJU
T1.9
22179-54010 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T1.92
22179-17010 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T1.94
22179-17011 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T1.96
22179-17012 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T1.98
22179-17013 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.0
22179-54011 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.02
22179-17014 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.04
22179-17015 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.06
22179-17016 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.08
22179-17017 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.1
22179-54012 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.12
22179-17018 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.14
22179-17019 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.16
22179-17020 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.18
22179-17021 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.2
22179-54013 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.22
22179-17022 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.24
22179-17023 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.26
22179-17024 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.28
22179-17025 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.3
22179-54014 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.32
22179-17026 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.34
22179-17027 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.36
22179-17028 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.38
22179-17029 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.4
22179-54015 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.42
22179-17030 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.44
22179-17031 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.46
22179-17032 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.48
22179-17033 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.5
22179-54016 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.52
22179-17034 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.54
22179-17035 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.56
22179-17036 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.58
22179-17037 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.6
22179-54017 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.62
22179-17038 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.64
22179-17039 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.66
22179-17040 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.68
22179-17041 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.7
22179-54018 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.72
22179-17042 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.74
22179-17043 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.76
22179-17044 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.78
22179-17045 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.8
22179-54019 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.82
22179-17046 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.84
22179-17047 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.86
22179-17048 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.88
22179-17049 TOYOTA
097
[1C]
SHIM, PLUNGER ADJU
T2.9
22179-54020 TOYOTA
105
[01]
BOLT, HEXAGON, W/
M6,L40
90099-04946 TOYOTA
106
[01]
BOLT, HEXAGON, W/
M6,L32
90099-04576 TOYOTA
108
[01]
WIRE SUB-ASSY
22751-6A041 TOYOTA
109
[01]
COVER SUB-ASSY, TI
-8911
22790-6A510 TOYOTA
109
[01]
COVER SUB-ASSY, TI
8911-
22790-6A770 TOYOTA
110
[01]
BRACKET, IDLE UP
22178-64010 TOYOTA
111
[01]
BOLT, W/WASHER
-8805
90099-04959 TOYOTA
111
[01]
BOLT, SOCKET
8805-
22395-58200 TOYOTA
112
[02]
BOLT, W/WASHER
-8805
91611-60820 TOYOTA
112
[02]
BOLT, SOCKET
M8,L16 8805-
22395-56350 TOYOTA
113
[01]
IDLE UP SUB-ASSY
-8911
22305-6A250 TOYOTA
113
[01]
IDLE UP SUB-ASSY
8911-
22305-6A770 TOYOTA
114
[02]
BOLT, W/WASHER
-8807
93381-16012 TOYOTA
114
[02]
BOLT, SOCKET
M6,L10 8807-
22395-56352 TOYOTA
115
[01]
CLIP, CONNECTOR SU
22172-64150 TOYOTA
116
[01]
NIPPLE SUB-ASSY, S
22548-64150 TOYOTA
118
[01]
CLIP, CONNECTOR SU
22172-6A360 TOYOTA
119
[01]
BOLT, GOVERNOR LIN
-8807
119
[01]
BOLT, GOVERNOR LIN
8807-
120
[01]
E-RING
D2
90096-90024 TOYOTA
121
[01]
BEARING, BALL
OD8
90099-10148 TOYOTA
123
[01]
PICKUP ASSY, TACHO
-9008
123
[01]
PICKUP ASSY, TACHO
9008--9211
83180-32020 TOYOTA
123
[01]
PICKUP ASSY, TACHO
9211-
124
[01]
O-RING
22193-64750 TOYOTA
125
[01]
ACTUATOR SET, IDLE
88031-20080 TOYOTA
126
[01]
BRACKET, IDLE UP
22178-6A360 TOYOTA
127
[01]
CLIP, CONNECTOR SU
22172-6A370 TOYOTA
128
[01]
SENSOR, ROTARY POS
-8902
89452-20090 TOYOTA
128
[01]
SENSOR, ROTARY POS
8902-
89452-20090 TOYOTA
129
[02]
SCREW, W/WASHER
93315-14012 TOYOTA
130
[01]
BRACKET SUB-ASSY,
-8804
22601-6A550 TOYOTA
130
[01]
BRACKET, IDLE UP
8804-
22178-6A550 TOYOTA
131
[01]
BAND
90099-35501 TOYOTA
132
[01]
FILTER, SUB-ASSY
22602-56350 TOYOTA
133
[01]
WASHER
22689-56350 TOYOTA
134
[01]
NUT, HEXAGON
-8807
90092-10101 TOYOTA
134
[01]
NUT
M6 8807-
90179-06009 TOYOTA
135
[01]
BOLT, W/WASHER
-8807
93381-16012 TOYOTA
135
[01]
BOLT, SOCKET
M6,L14 8807-
22395-54263 TOYOTA

Include in ##:

09600-04350 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09600-04350
22100-6A56
TOYOTA
PUMP ASSY, INJECTI
0960004350
22100-6A560
TOYOTA
PUMP ASSY, INJECTI

Test Calibration Data:

0960004350 22100-6A560




Have questions with 09600-04350?





Group cross 09600-04350 TOYOTA

Back to top
