09300-03150 PUMP ASSY, INJECTI Calibration Data


Rating:
4
Buy PUMP ASSY, INJECTI 09300-03150 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S6M3-MTK
Engine
S6M3-MTK
Serial start-end
8901--8911
Info
Injector Nozzle
093500-4280
Injector nozzle: 0935004280

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Pump assy, fuel fe
Pump assy, fuel fe
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
NB6,RSVH -9202
00.001
PUMP ASSY, INJECTI
NB6,RSVH 9202-
01.002
BODY ASSY, INJECTI
NB6 -9202
01.002
BODY ASSY, INJECTI
NB6 9202-
01.003
PUMP ASSY, FUEL FE
KE
01.004
PUMP ASSY, FUEL FE
KD
01.005
GOVERNOR ASSY, MEC
RSVH
02.008
COMPENSATOR SUB-AS
-9309
02.008
COMPENSATOR SUB-AS
9309-

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
NB6,RSVH -9202
000
[01]
PUMP ASSY, INJECTI
NB6,RSVH 9202-
003
[01]
BODY ASSY, INJECTI
NB6 -9202
003
[01]
BODY ASSY, INJECTI
*2 9202-
004
[01]
GOVERNOR ASSY, MEC
RSVH -9309
004
[01]
GOVERNOR ASSY, MEC
RSVH 9309-
005
[01]
BOLT
M6,L10 -9202
005
[01]
BOLT, W/WASHER
M8,L20 9202-
006
[01]
BLOCK, COUPLING
-8908
006
[01]
BLOCK, COUPLING
*1 8908-
007
[01]
NUT, TIMER ROUND
008
[01]
WASHER, COUNTERSUN
T1.5ID18
009
[01]
GEAR, TIMER DRIVIN
010
[01]
O-RING
ID79.5
011
[01]
KEY, WOODRUFF
W5,H7.5 -9202
011
[01]
KEY, WOOD RUFF
*2 9202-
015
[01]
PUMP ASSY, FUEL FE
-8801
015
[01]
PUMP ASSY, FUEL FE
KD 8801-
016
[02]
BOLT
M8,L14 -9202
016
[02]
BOLT, W/WASHER
M8,L14 9202-
017
[04]
BOLT
M8,L16 -9202
017
[04]
BOLT, W/WASHER
M8,L16 9202-
018
[01]
COVER, CONTROL RAC
-8908
018
[01]
COVER, CONTROL RAC
*1 8908-
019
[01]
WASHER, COPPER PLA
T1.5
020
[01]
COVER SUB-ASSY, TI
-8908
020
[01]
COVER SUB-ASSY, TI
*1 8908-
021
[04]
NUT, HEXAGON
M10
022
[04]
BOLT, HEXAGON
M10,L24
023
[04]
WASHER, STEEL PLAT
FOR M10
026
[08]
WASHER, PLATE, SK
T1 -9202
027
[08]
WASHER, SPRING
M10
028
[01]
BOLT
M8,L22 -9202
028
[01]
BOLT, W/WASHER
M8,L22 9202-

Cross reference number



Part num
Firm num
Firm
Name
09300-03150

PUMP ASSY, INJECTI

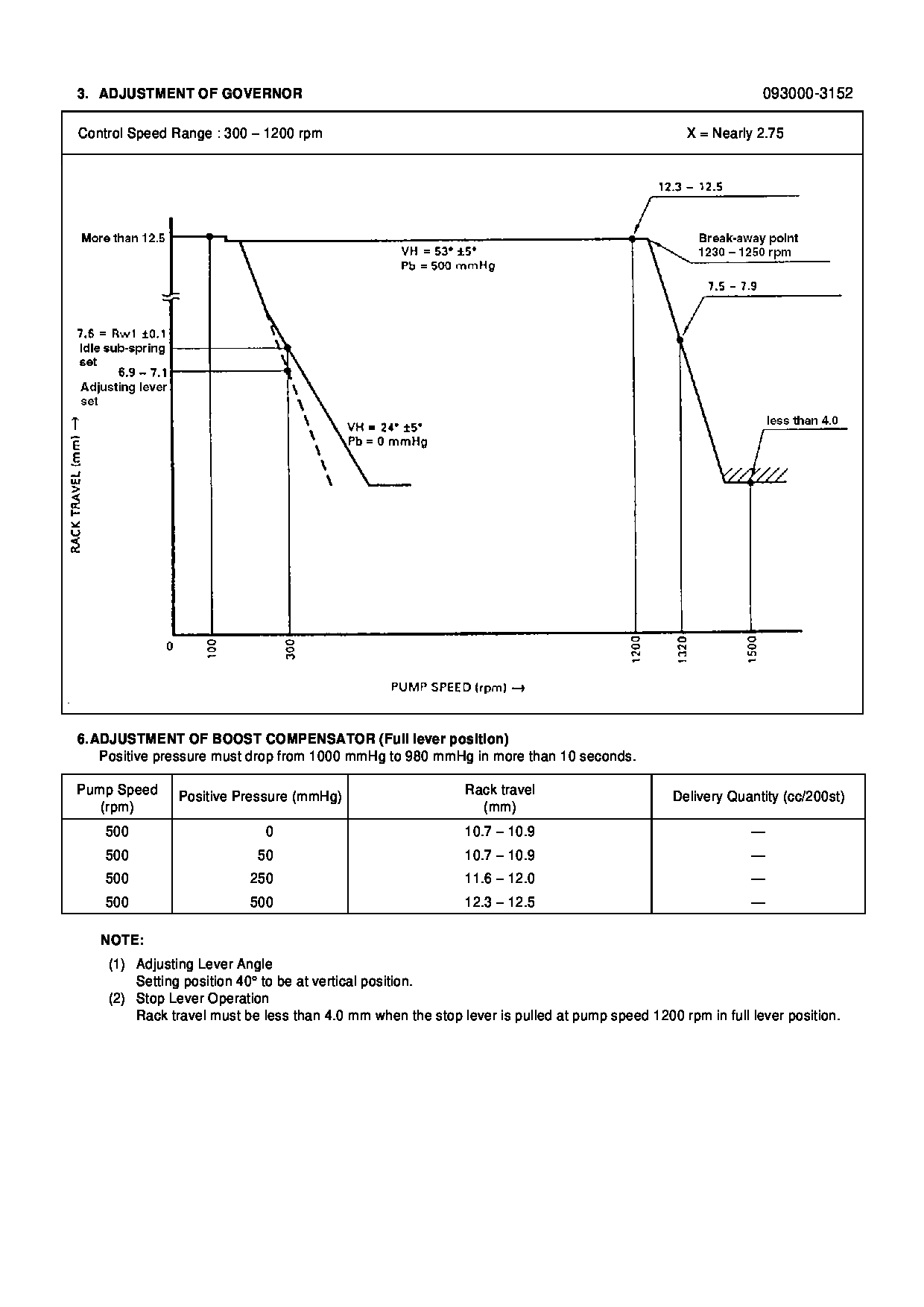

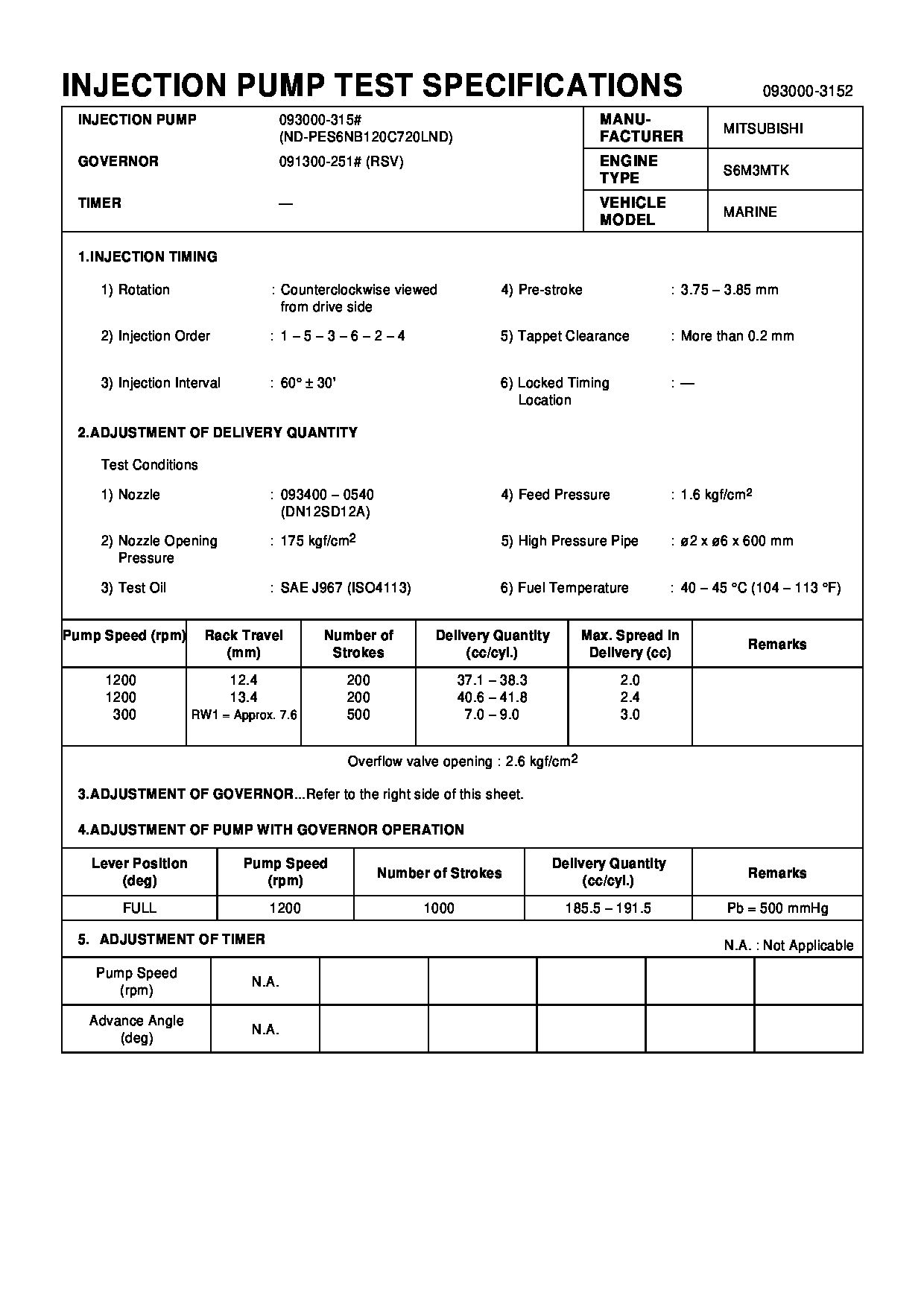

Test Calibration Data:

0930003150 33A65-10100
