09300-02880 PUMP ASSY, INJECTI Calibration Data


Rating:
35
Buy PUMP ASSY, INJECTI 09300-02880 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S4M-MTK-2
Engine
S4M-MTK-2
Serial start-end
8808--9206
Info
Injector Nozzle
093500-3040
Injector nozzle: 0935003040

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400380
Governor assy, mec
1908900170
Timer assy, automa
0918030030
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
09300-02880 MITSUBISHI HEAEY INDUSTRIES
NB4,RSV
01.002
BODY ASSY, INJECTI
09010-08091 MITSUBISHI HEAEY INDUSTRIES
RSV
01.003
GOVERNOR ASSY, MEC
09080-09171 MITSUBISHI HEAEY INDUSTRIES
RSV
01.004
TIMER ASSY, AUTOMA
09180-02440 MITSUBISHI HEAEY INDUSTRIES
SA/4SP
01.005
PUMP ASSY, FUEL FE
09210-01720 MITSUBISHI HEAEY INDUSTRIES
KS

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-02880
PUMP ASSY, INJECTI
NB4,RSV
003
[01]
09010-08091
BODY ASSY, INJECTI
NB4
004
[01]
09080-09171
GOVERNOR ASSY, MEC
RSV
005
[02]
91418-06201
BOLT, W/WASHER
M6,L20
006
[01]
09180-02440
TIMER ASSY, AUTOMA
SA/4SP
007
[01]
09001-20270
NUT, TIMER ROUND
008
[01]
90801-40280
O-RING
ID27.7
009
[01]
94901-40070
WASHER, COUNTERSUN
T1.5ID18
010
[01]
94914-03690
O-RING
ID79.5
011
[01]
90458-05750
KEY, WOODRUFF
W5,H7.5
012
[01]
09031-00110
VALVE ASSY, OVERFL
2.4-2.8K
013
[02]
09022-20070
WASHER, FUEL PIPE
T1.2
015
[01]
09210-01720
PUMP ASSY, FUEL FE
KS
016
[01]
94904-70620
BOLT, W/WASHER
M6,L14
017
[04]
91518-06161
BOLT, W/WASHER
M6,L16
018
[01]
09001-80381
COVER, CONTROL RAC
019
[01]
94901-81550
WASHER, COPPER PLA
T1.5
020
[01]
09006-00220
COVER SUB-ASSY, TI
021
[04]
94905-02680
NUT, HEXAGON
M10
022
[04]
90258-10001
WASHER, SPRING
M10
023
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10

Include in ##:

09300-02880 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09300-02880

PUMP ASSY, INJECTI

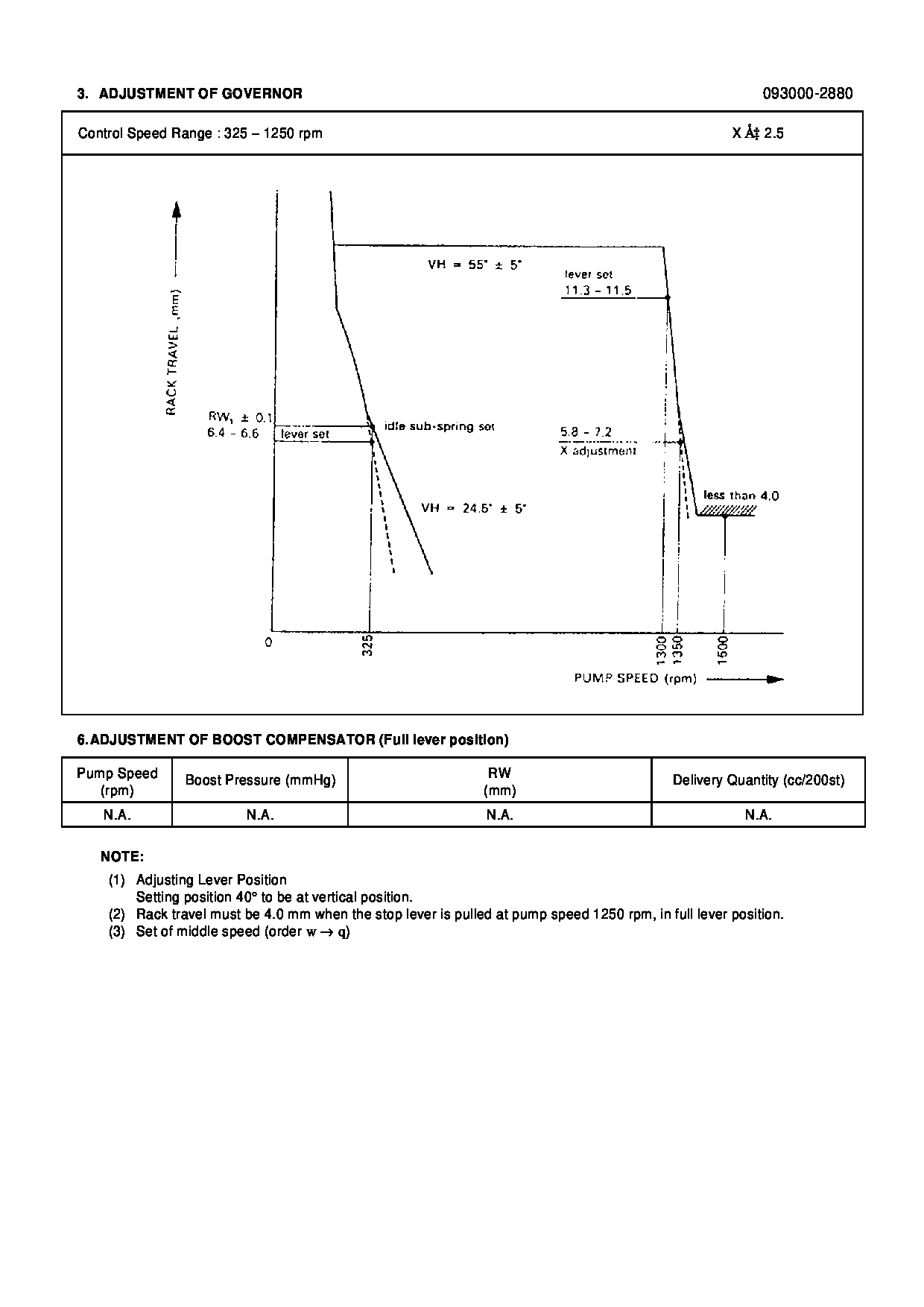

Test Calibration Data:

Get Full test data file
0930002880 42624-20200
EE2880
EE2880
