09300-00070 PUMP ASSY, INJECTI Calibration Data


Rating:
71
Buy PUMP ASSY, INJECTI 09300-00070 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 2H
Engine
2H
Serial start-end
8106-
Info
Injector Nozzle
093500-1800
Injector nozzle: 0935001800

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400340
Governor assy, mec
1908900250
Timer assy, automa
0918030050
Pump assy, fuel fe
1922900060

Components :

00.001
PUMP ASSY, INJECTI
09300-00070 TOYOTA
A6,RUV
01.002
BODY ASSY, INJECTI
09010-04650 TOYOTA
A6,OLD
01.003
GOVERNOR ASSY, MEC
09080-06490 TOYOTA
RUV
01.004
TIMER ASSY, AUTOMA
09180-01331 TOYOTA
SCZ
01.005
PUMP ASSY, FUEL FE
09210-01450 TOYOTA
01.005
PUMP ASSY, FUEL FE
09210-01450 TOYOTA
KE

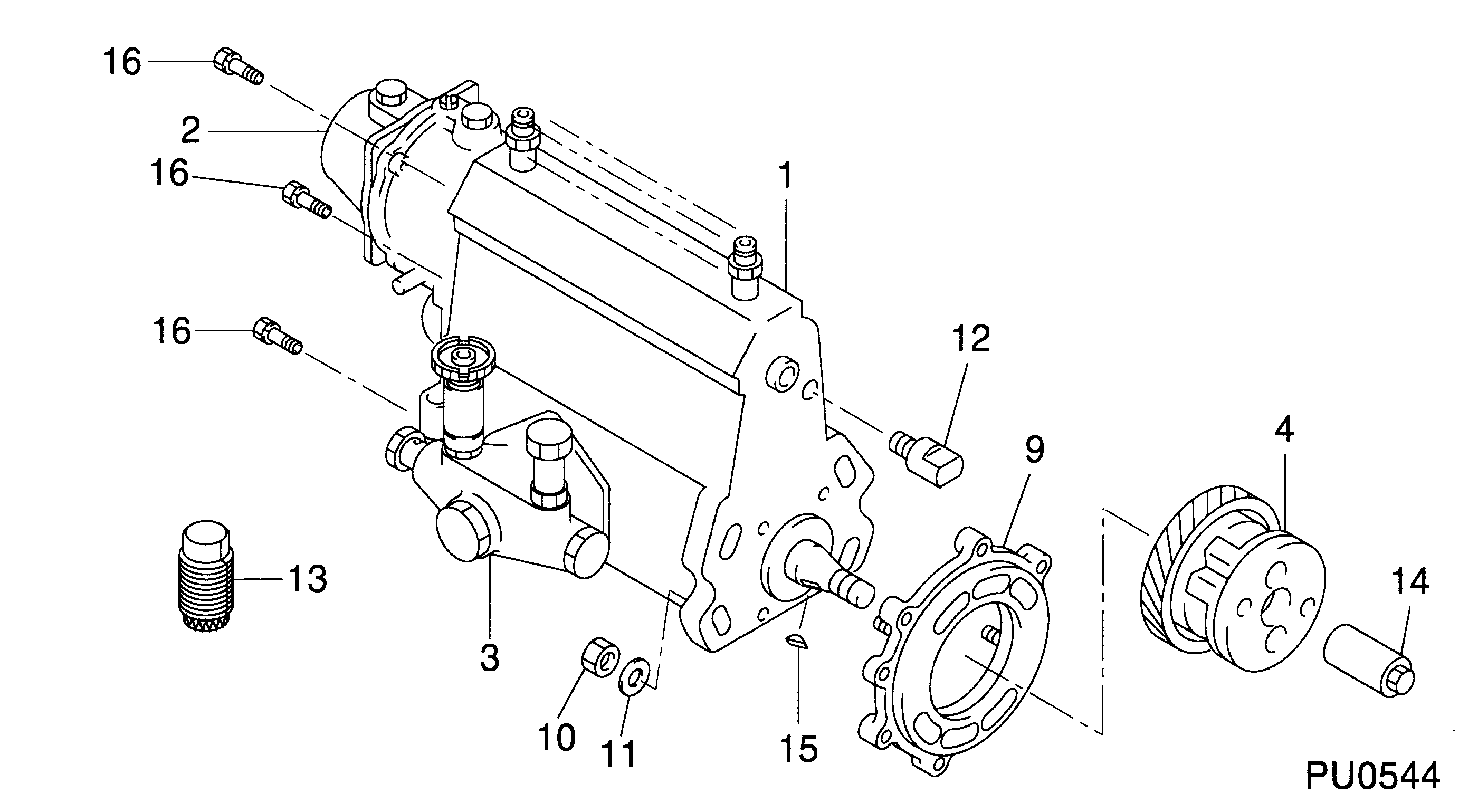

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09300-00071
PUMP ASSY, INJECTI
A6,RUV
22010-42200-71 TOYOTA
001
[01]
09010-04650
BODY ASSY, INJECTI
A6,OLD
002
[01]
09080-06492
GOVERNOR ASSY, MEC
RUV
22410-31960-71 TOYOTA
003
[01]
09210-01450
PUMP ASSY, FUEL FE
KE22
004
[01]
09180-01331
TIMER ASSY, AUTOMA
SCZ
009
[01]
09006-00100
COVER SUB-ASSY, TI
010
[04]
91266-10081
NUT, HEXAGON
M10
011
[04]
94901-15020
WASHER, STEEL PLAT
FOR M10
012
[01]
09001-80061
COVER, CONTROL RAC
013
[01]
09006-10011
COVER, PRIMING PUM
014
[01]
09001-20260
NUT, TIMER ROUND
015
[01]
94913-00190
KEY, WOODRUFF
016
[06]
94904-70620
BOLT, W/WASHER
M6,L14

Cross reference number



Part num
Firm num
Firm
Name
09300-00070

PUMP ASSY, INJECTI
0930000070
22010-42200-71
TOYOTA
PUMP ASSY, INJECTI

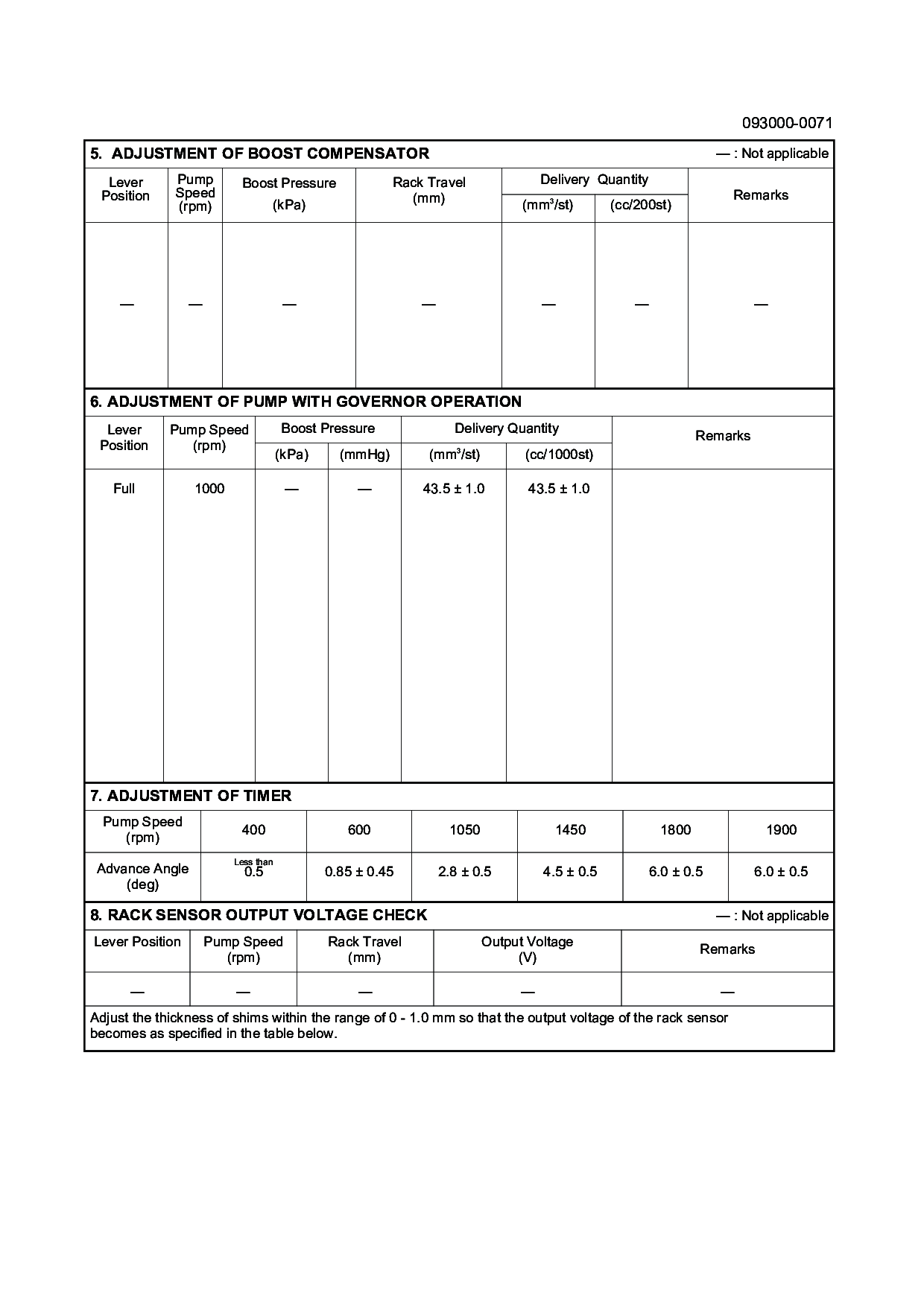

Test Calibration Data:

Get Full test data file
0930000070 22010-42200-71
EE0071
EE0071
