09000-09700 PUMP ASSY, INJECTI Calibration Data


Rating:
64
Buy PUMP ASSY, INJECTI 09000-09700 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL S4D130
Engine
S4D130
Serial start-end
8001--9508
Info
Injector Nozzle
093500-1530
Injector nozzle: 0935001530

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400320
Governor assy, mec
1908900150
Governor assy, mec
1908900170
Pump assy, fuel fe
No Application

Components :

00.001
PUMP ASSY, INJECTI
09000-09700 KOMATSU
A4,RSV
01.002
BODY ASSY, INJECTI
09010-02850 KOMATSU
A4
01.003
GOVERNOR ASSY, MEC
09080-03990 KOMATSU
RSV
01.004
GOVERNOR ASSY, MEC
09080-04450 KOMATSU
RSV
01.005
PUMP ASSY, FUEL FE
09210-00581 KOMATSU
KE
01.006
COUPLING ASSY
09250-00300 KOMATSU
SP

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09000-09702
PUMP ASSY, INJECTI
A4,RSV
006
[01]
09010-02850
BODY ASSY, INJECTI
A4
007
[01]
09080-03990
GOVERNOR ASSY, MEC
RSV -8001
007
[01]
09080-04450
GOVERNOR ASSY, MEC
RSV 8002-
008
[06]
91418-06161
BOLT, W/WASHER
M6,L16
009
[01]
91518-08221
BOLT, W/WASHER
M8,L22
010
[01]
09210-00582
PUMP ASSY, FUEL FE
KE
011
[01]
09250-00301
COUPLING ASSY
SP
012
[01]
09001-80090
COVER, CONTROL RAC
013
[01]
09001-20190
NUT, TIMER ROUND
014
[01]
94901-50590
WASHER, SPRING
T3.5
015
[01]
94913-00210
KEY, WOODRUFF
T3.985
016
[01]
09006-10011
COVER, PRIMING PUM

Cross reference number



Part num
Firm num
Firm
Name
09000-09700

PUMP ASSY, INJECTI

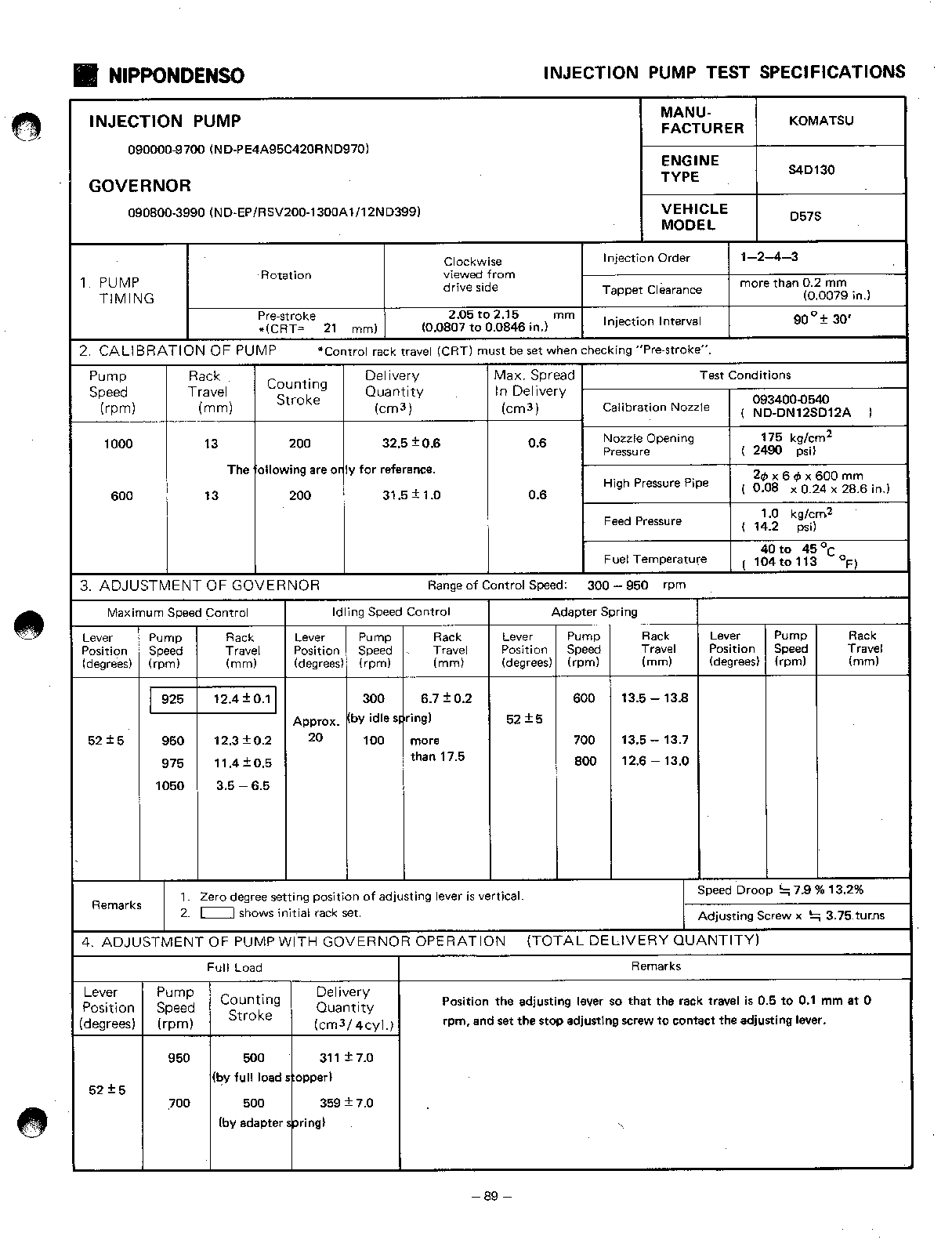

Test Calibration Data:

Get Full test data file
0900009700 61157-11100
EA9700
EA9700
