09000-02290 PUMP ASSY, INJECTI Calibration Data


Rating:
8
Buy PUMP ASSY, INJECTI 09000-02290 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 4D120-11ASP
Engine
4D120-11ASP
Serial start-end
7706--8001
Info
Injector Nozzle
093500-0510
Injector nozzle: 0935000510

Components :

00.001
PUMP ASSY, INJECTI
09000-02290 KOMATSU
A4,RSV
01.002
BODY ASSY, INJECTI
09010-01012 KOMATSU
A4:DRIV.16.8
01.003
PUMP ASSY, FUEL FE
09210-00671 KOMATSU
KE
01.004
COUPLING ASSY
09250-00290 KOMATSU
SP

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09000-02293
PUMP ASSY, INJECTI
A4,RSV
001
[01]
09001-20010
NUT, TIMER ROUND
002
[01]
09001-80010
COVER, CONTROL RAC
M18L30.5
003
[01]
09006-10011
COVER, PRIMING PUM
004
[01]
09010-01012
BODY ASSY, INJECTI
A4:DRIV.16.8
005
[01]
09250-00291
COUPLING ASSY
SP
006
[01]
90258-12001
WASHER, SPRING
ID12.2
007
[01]
91518-08221
BOLT, W/WASHER
M8,L22
008
[01]
09080-00741
GOVERNOR ASSY, MEC
RSV
009
[01]
09210-00671
PUMP ASSY, FUEL FE
KE
010
[01]
94913-00050
KEY, WOODRUFF
T3.0
011
[06]
94900-50191
SCREW, SLOTTED FLA
M6,L14

Cross reference number



Part num
Firm num
Firm
Name
09000-02290

PUMP ASSY, INJECTI

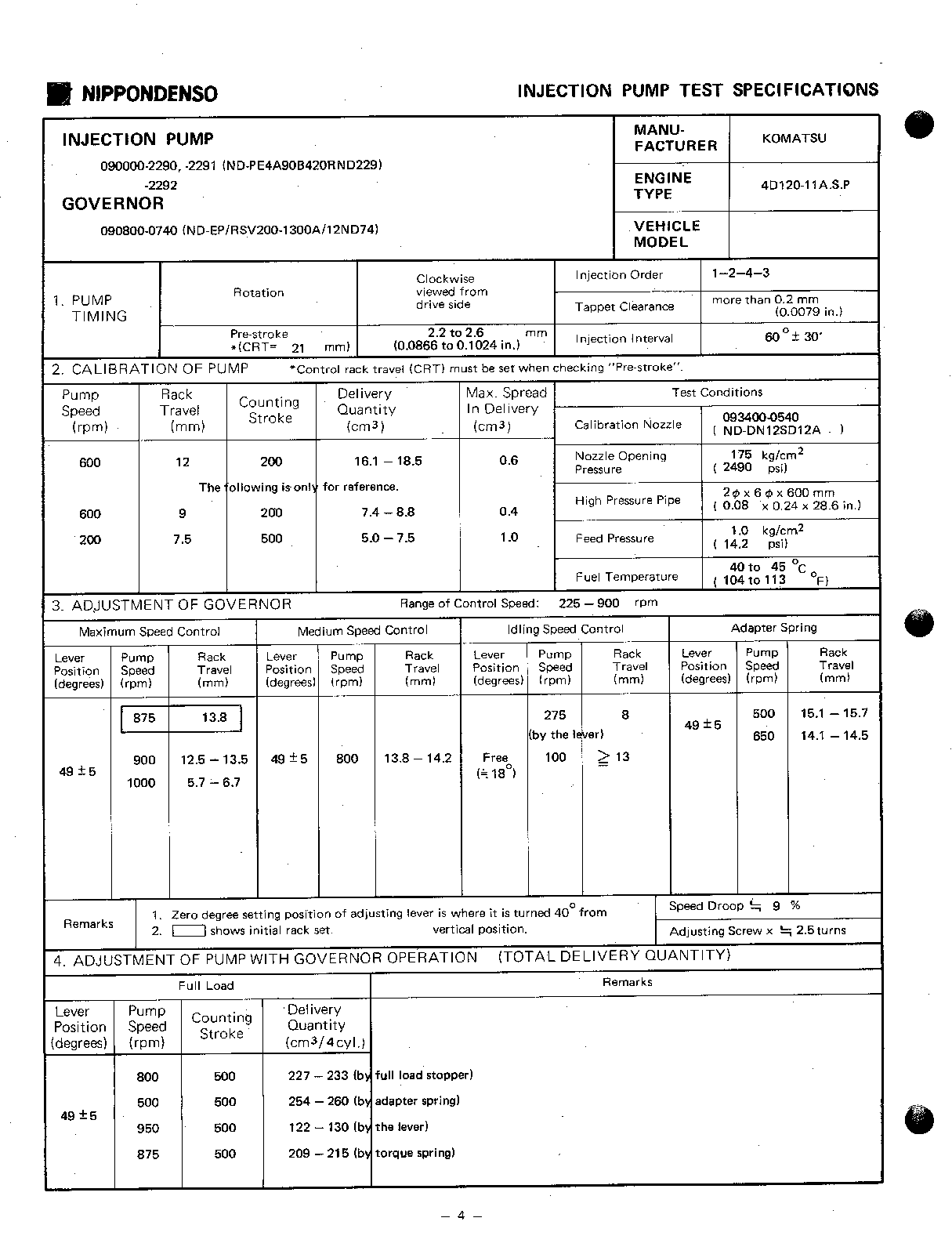

Test Calibration Data:

Get Full test data file
0900002290 61107-32002
EA2290
EA2290
