09350-02220 HOLDER & NOZZLE SE Denso Cross


Rating:
3
Buy HOLDER & NOZZLE SE 09350-02220 genuine, new aftermarket engine parts with delivery

Information holder & nozzle se Denso

Product
Nozzle & Nozzle Holder
Vehicle engine
INDUSTRIAL 4D105
Engine
4D105
Serial start-end
8106-
Info
Injector Nozzle

Components :

00.001
HOLDER & NOZZLE SE
09350-02220 KOMATSU

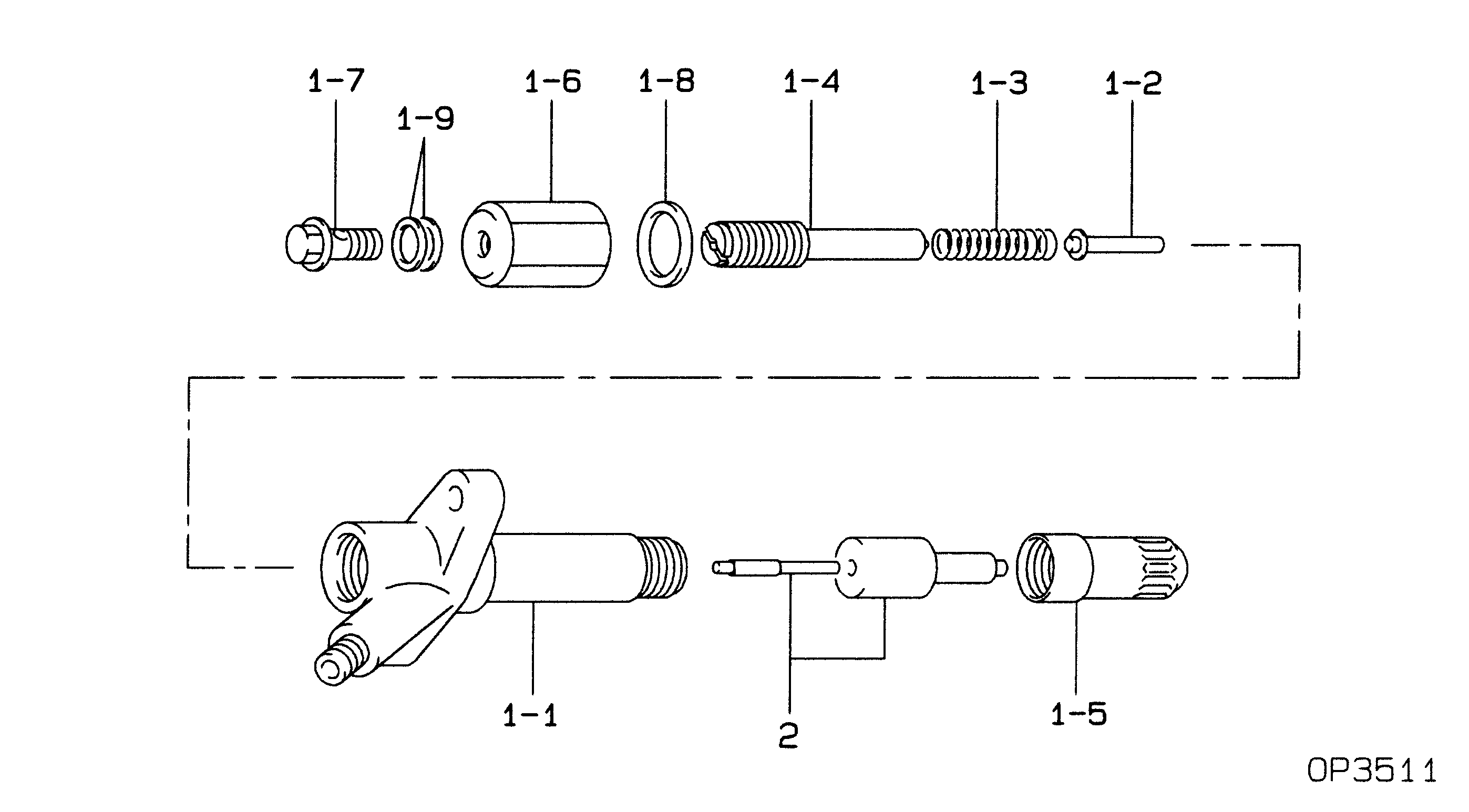

Scheme #.#:

HOLDER & NOZZLE SE
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-02220
HOLDER & NOZZLE SE
001
[01]
09310-02220
HOLDER ASSY, NOZZL
001-001
[01]
09311-02220
BODY SUB-ASSY, NOZ
001-002
[01]
09312-10370
PIN, NOZZLE HOLDER
001-003
[01]
09312-70280
SPRING, NOZZLE HOL
001-004
[01]
09313-10210
SCREW, ADJUST
001-005
[01]
09316-40920
NUT, NOZZLE RETAIN
001-006
[01]
09313-40350
NUT, CAP
001-007
[01]
94918-00152
SCREW, HOLLOW
M8,14.9
001-008
[01]
09324-50052
WASHER
T0.5
001-009
[02]
09022-20080
WASHER, FUEL PIPE
002
[01]
09340-00980
NOZZLE ASSY

Include in ##:

09350-02220 as HOLDER & NOZZLE SE

Nozzle Specification:

Parts number
0935002220 KOMATSU
Nozzle
0934000980
First opm
22.54-23.52
First op
230-240
Second om
-
Second op
-
Torquen
78.4-98.0
Torque
8.0-10.0
Prelift
-
Max lift
Engine
INDUSTRIAL 4D105
Information

Include as Nozzle:

1900006910 as Nozzle
1900007940 PUMP ASSY, INJECTI
1900007950

Cross reference number



Part num
Firm num
Firm
Name
09350-02220

HOLDER & NOZZLE SE
