09130-07640 DAIHATSU GOVERNOR ASSY, MEC Denso Cross


Rating:
25
Buy GOVERNOR ASSY, MEC 09130-07640 DAIHATSU genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

DAIHATSU GOVERNOR ASSY, MEC GA
  • *1 WHEN REPLACING A CAM PLATE, SELECT THE SPECIFIED
  • GUIDE ARM TO MATCH THE MARK.

KIT List:

Part name
Kit1
Kit2
Governor assy, mec
Governor assy, mec

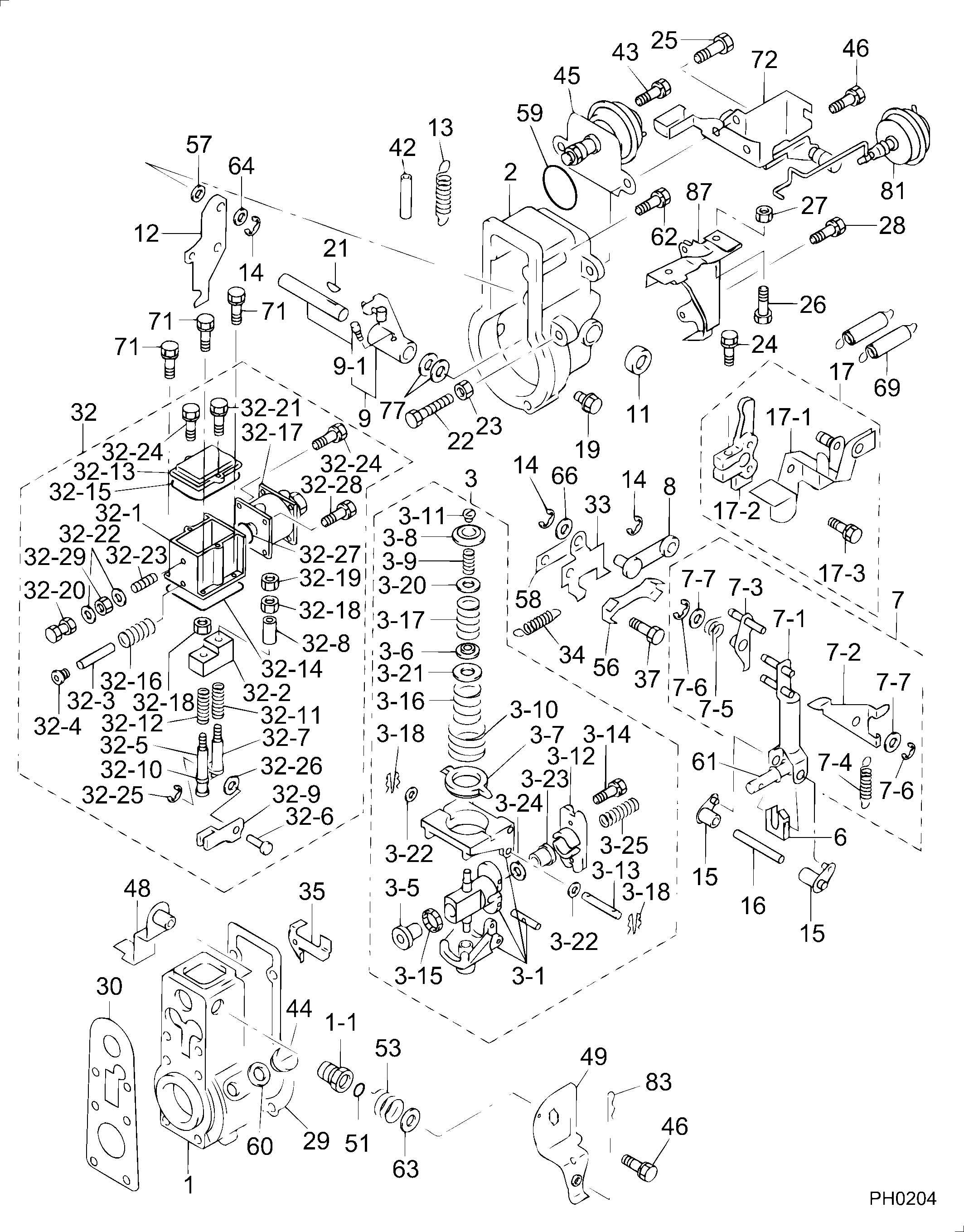

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09130-07640
GOVERNOR ASSY, MEC
R801H
001
[01]
HOUSING SUB-ASSY,
R801H
001-001
[01]
BUSHING, BEARING
M16,16.6
002
[01]
COVER ASSY, GOVERN
003
[01]
FLYWEIGHT ASSY
003-001
[01]
FLYWEIGHT SUB-ASSY
003-005
[01]
BUSHING ASSY, CAMS
003-006
[02]
SEAT, GOVERNOR SPR
003-007
[02]
SEAT, GOVERNOR SPR
003-008
[02]
GUIDE, SPRING
003-009
[02]
SPRING, MECHANICAL
003-010
[02]
SPRING, IDLING
L26.6,YELLOW
003-011
[02]
NUT, ADJUSTING
M8,0.75
003-012
[01]
BUSHING, GUIDE
003-013
[01]
BOLT, BELLCRANK
PIN TYPE
003-014
[02]
BOLT, W/WASHER
M6,L16
003-015
[06]
DAMPER, FLYWEIGHT
003-016
[02]
SPRING, IDLING
L25.7,YELLOW
003-017
[02]
SPRING, SPEED CONT
003-018
[02]
E-RING
PIN TYPE
003-020
[2C]
WASHER, LOCK
T0.4
003-020
[2C]
WASHER, LOCK
T0.6
003-020
[2C]
WASHER, LOCK
T1.0
003-020
[2C]
WASHER, LOCK
T0.3
003-020
[2C]
WASHER, LOCK
T0.2
003-021
[2C]
WASHER, LOCK
T0.2
003-021
[2C]
WASHER, LOCK
T0.4
003-021
[2C]
WASHER, LOCK
T0.6
003-021
[2C]
WASHER, LOCK
T1.0
003-022
[02]
WASHER, LOCK
ID6,T1.0
003-023
[01]
NUT, ROUND
003-024
[1C]
SHIM
T1.6
003-024
[1C]
SHIM
T1.65
003-024
[1C]
SHIM
T1.7
003-024
[1C]
SHIM
T1.75
003-024
[1C]
SHIM
T1.8
003-024
[1C]
SHIM
T1.85
003-024
[1C]
SHIM
T1.9
003-024
[1C]
SHIM
T1.95
003-024
[1C]
SHIM
T2.0
003-024
[1C]
SHIM
T2.1
003-024
[1C]
SHIM
T2.2
003-024
[1C]
SHIM
T2.3
003-024
[1C]
SHIM
T2.05
003-024
[1C]
SHIM
T2.15
003-024
[1C]
SHIM
T2.25
003-025
[01]
SPRING, IDLING
L21.75,YELLOW
006
[01]
SLIDER
007
[01]
LEVER ASSY, FLOATI
007-001
[01]
LEVER SUB-ASSY, FL
007-002
[01]
STOPPER SUB-ASSY,
007-003
[01]
LEVER SUB-ASSY, CO
007-004
[01]
SPRING, RETURN
007-005
[01]
SPRING, RETURN
007-006
[02]
E-RING
D11,T0.7
007-007
[1C]
WASHER, PLATE, SK
D12,T0.2
007-007
[1C]
WASHER, PLATE, SK
T0.05
007-007
[1C]
WASHER, PLATE, SK
T0.1
007-007
[1C]
WASHER, PLATE, SK
T0.3
007-007
[1C]
WASHER, PLATE, SK
T0.4
008
[01]
SHACKLE SUB-ASSY
009
[1C]
ARM ASSY, GUIDE
NO MARKING *1
009
[1C]
ARM ASSY, GUIDE
MARKING II *1
009
[1C]
ARM ASSY, GUIDE
MARKING III *1
009-001
[01]
OVER-HAUL KIT, GOV
L 97.6
011
[01]
SEAL, OIL
012
[01]
PLATE, CAM
*1
013
[01]
SPRING, RETURN
014
[03]
E-RING
D11,T0.7
015
[02]
LEVER SUB-ASSY, SU
016
[01]
SHAFT, LEVER SUPPO
017
[01]
LEVER SET
017-001
[01]
LEVER SET
ADJUST L
017-002
[01]
LEVER, ADJUSTING
017-003
[02]
BOLT, W/WASHER
M6,L16
019
[02]
PLUG, SCREW
M8,L9
021
[01]
KEY, WOODRUFF
T3.0
022
[01]
STOPPER
023
[01]
NUT
M8,L19
024
[01]
BOLT, W/WASHER
M6,L20
025
[01]
BOLT, SOCKET
M6,L20
026
[01]
BOLT, HEXAGON
M6,L35
027
[01]
NUT, HEXAGON
M6,L5
028
[02]
BOLT, W/WASHER
M6,L40
029
[01]
GASKET, COVER
030
[01]
GASKET, PUMP BODY
032
[01]
HOUSING SUB-ASSY,
032-001
[01]
HOUSING, FULL LOAD
032-002
[01]
BLOCK, SLIDING
032-003
[01]
SHAFT, LEVER SUPPO
032-004
[01]
PLUG, SCREW
M10,L9.5
032-005
[01]
ADAPTER
032-006
[01]
PIN, CONNECTING
032-007
[01]
ADAPTER
032-008
[01]
COLLAR
032-009
[01]
CAM, FULL STOP
032-010
[01]
BUSHING
032-011
[01]
SPRING, MECHANICAL
032-012
[01]
SPRING, MECHANICAL
032-013
[01]
PLATE, COVER
032-014
[01]
GASKET
51X51 MM
032-015
[01]
GASKET
54X42 MM
032-016
[01]
SPRING, MECHANICAL
032-017
[01]
COMPENSATOR SUB-AS
032-018
[02]
NUT, HEXAGON
M6,L5
032-019
[01]
NUT, HEXAGON
M6,L36
032-020
[01]
NUT, CAP
M6,L9
032-021
[02]
BOLT, WASHER HEAD
M6,L16
032-022
[02]
WASHER, DRAIN SCRE
T1.0
032-023
[01]
SCREW, STOPPER
L31.5
032-024
[03]
BOLT, W/WASHER
M6,L16
032-025
[01]
E-RING
D11,T0.7
032-026
[1C]
WASHER, PLATE, SK
T0.05
032-026
[1C]
WASHER, PLATE, SK
T0.1
032-026
[1C]
WASHER, PLATE, SK
T0.2
032-027
[01]
O-RING
ID26.2
032-028
[01]
BOLT, W/WASHER
M6,L16
032-029
[01]
NUT
M6,L11.3
033
[01]
ARM SUB-ASSY
034
[01]
SPRING, RETURN
035
[01]
PLATE
037
[02]
BOLT, DIAPHRAGM CO
042
[01]
TUBE, RUBBER
043
[01]
BOLT, W/WASHER
M6,L16
044
[01]
PLUG, SCREW
045
[01]
IDLE UP SUB-ASSY
DASH POT
046
[03]
BOLT, W/WASHER
M6,L14
048
[01]
ARM SUB-ASSY
049
[01]
LEVER SUB-ASSY, ST
051
[01]
O-RING
ID9.0
053
[01]
SPRING, RETURN
056
[01]
WASHER, LOCK
T0.5
057
[01]
WASHER, LOCK
T2.0
058
[01]
PLATE
059
[01]
O-RING
ID39.5
060
[01]
GASKET
061
[1C]
SHAFT, SLIDING WEI
L31.9
061
[1C]
SHAFT, SLIDING WEI
L31.7
061
[1C]
SHAFT, SLIDING WEI
L31.5
061
[1C]
SHAFT, SLIDING WEI
L31.3
061
[1C]
SHAFT, SLIDING WEI
L31.1
061
[1C]
SHAFT, SLIDING WEI
L30.9
061
[1C]
SHAFT, SLIDING WEI
L30.7
061
[1C]
SHAFT, SLIDING WEI
L31.8
061
[1C]
SHAFT, SLIDING WEI
L31.6
061
[1C]
SHAFT, SLIDING WEI
L31.4
061
[1C]
SHAFT, SLIDING WEI
L31.2
061
[1C]
SHAFT, SLIDING WEI
L31.0
061
[1C]
SHAFT, SLIDING WEI
L30.8
061
[1C]
SHAFT, SLIDING WEI
L32.0
061
[1C]
SHAFT, SLIDING WEI
L32.1
062
[04]
BOLT, W/WASHER
M6,L35
063
[1C]
WASHER, PLATE, SK
T0.1,D16
063
[1C]
WASHER, PLATE, SK
T0.2,D16
063
[1C]
WASHER, PLATE, SK
T0.5,D16
063
[1C]
WASHER, PLATE, SK
T0.5
064
[1C]
WASHER, LOCK
T0.2
064
[1C]
WASHER, LOCK
T0.3
064
[1C]
WASHER, LOCK
T0.4
064
[1C]
WASHER, LOCK
T0.5
065
[01]
WASHER, PLATE, SK
T0.5
066
[01]
WASHER, STEEL PLAT
T0.5
069
[02]
SPRING SUB-ASSY, R
071
[04]
BOLT, WASHER HEAD
M6,L16
072
[01]
ARM, SPRING
077
[2C]
WASHER, LOCK
T0.5
077
[2C]
WASHER, LOCK
T0.55
077
[2C]
WASHER, LOCK
T0.6
077
[2C]
WASHER, LOCK
T0.65
077
[2C]
WASHER, LOCK
T0.7
077
[2C]
WASHER, LOCK
T0.75
077
[2C]
WASHER, LOCK
T0.8
081
[01]
ACTUATOR SET, IDLE
STOP ACTUATOR
083
[01]
PIN, LEVER CONECTI
NOMNAL DIA.4.0
087
[01]
BRACKET SUB-ASSY,

Include in ##:

09130-07640 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09130-07640

DAIHATSU
GOVERNOR ASSY, MEC
