09130-04941 GOVERNOR ASSY, MEC Denso Cross


Rating:
1
Buy GOVERNOR ASSY, MEC 09130-04941 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

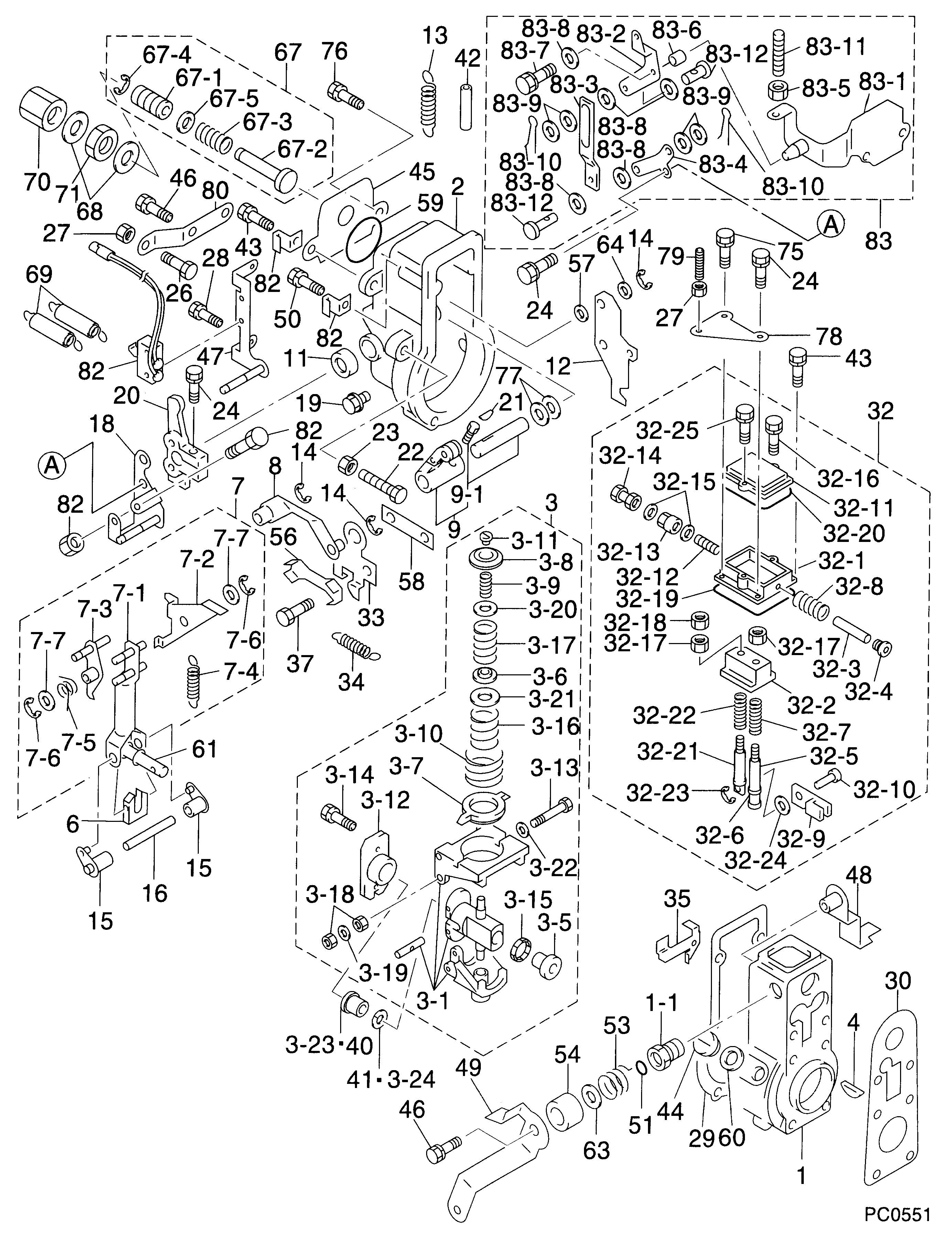

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09130-04941
GOVERNOR ASSY, MEC
R801
001
[01]
HOUSING SUB-ASSY,
001-001
[01]
BUSHING, BEARING
002
[01]
COVER ASSY, GOVERN
003
[01]
FLYWEIGHT ASSY
003-001
[01]
FLYWEIGHT SUB-ASSY
-0107
003-001
[01]
FLYWEIGHT SUB-ASSY
0108-
003-005
[01]
BUSHING ASSY, CAMS
0108-
003-006
[02]
SEAT, GOVERNOR SPR
003-007
[02]
SEAT, GOVERNOR SPR
003-008
[02]
GUIDE, SPRING
003-009
[02]
SPRING, MECHANICAL
003-010
[02]
SPRING, IDLING
L23.4,RED
003-011
[02]
NUT, ADJUSTING
M8,0.75
003-012
[01]
BUSHING, GUIDE
003-013
[01]
BOLT, BELLCRANK
BOLTTYPE
003-014
[02]
BOLT, W/WASHER
M6,L16
003-015
[06]
DAMPER, FLYWEIGHT
0108-
003-016
[02]
SPRING, IDLING
L26.0,BLACK
003-017
[02]
SPRING, SPEED CONT
K4.25
003-018
[02]
NUT, HEXAGON
M6,L5
003-019
[01]
WASHER, LOCK
D16,T0.5
003-020
[2C]
WASHER, LOCK
T0.4
003-020
[2C]
WASHER, LOCK
T0.6
003-020
[2C]
WASHER, LOCK
T1.0
003-021
[2C]
WASHER, LOCK
T0.2
003-021
[2C]
WASHER, LOCK
T0.4
003-021
[2C]
WASHER, LOCK
T0.6
003-021
[2C]
WASHER, LOCK
T1.0
003-022
[01]
WASHER, PLATE, SK
D12,T0.5
003-023
[01]
NUT, ROUND
0108-
003-024
[1C]
SHIM
T1.6 0108-
003-024
[1C]
SHIM
T1.65 0108-
003-024
[1C]
SHIM
T1.7 0108-
003-024
[1C]
SHIM
T1.75 0108-
003-024
[1C]
SHIM
T1.8 0108-
003-024
[1C]
SHIM
T1.85 0108-
003-024
[1C]
SHIM
T1.9 0108-
003-024
[1C]
SHIM
T1.95 0108-
003-024
[1C]
SHIM
T2.0 0108-
003-024
[1C]
SHIM
T2.1 0108-
003-024
[1C]
SHIM
T2.2 0108-
003-024
[1C]
SHIM
T2.3 0108-
003-024
[1C]
SHIM
T2.05 0108-
003-024
[1C]
SHIM
T2.15 0108-
003-024
[1C]
SHIM
T2.25 0108-
004
[01]
KEY, WOODRUFF
006
[01]
SLIDER
007
[01]
LEVER ASSY, FLOATI
007-001
[01]
LEVER SUB-ASSY, FL
007-002
[01]
STOPPER SUB-ASSY,
007-003
[01]
LEVER SUB-ASSY, CO
007-004
[01]
SPRING, RETURN
007-005
[01]
SPRING, RETURN
007-006
[02]
E-RING
007-007
[C]
WASHER, PLATE, SK
T0.1
007-007
[C]
WASHER, PLATE, SK
T0.05
007-007
[C]
WASHER, PLATE, SK
T0.2
007-007
[C]
WASHER, PLATE, SK
T0.3
007-007
[C]
WASHER, PLATE, SK
T0.4
008
[01]
SHACKLE SUB-ASSY
009
[01]
ARM ASSY, GUIDE
009-001
[01]
OVER-HAUL KIT, GOV
011
[01]
SEAL, OIL
012
[01]
PLATE, CAM
013
[01]
SPRING, RETURN
014
[03]
E-RING
015
[02]
LEVER SUB-ASSY, SU
016
[01]
SHAFT, LEVER SUPPO
018
[01]
LEVER SUB-ASSY, AD
019
[02]
PLUG, SCREW
020
[01]
LEVER SUB-ASSY, AD
021
[01]
KEY, WOODRUFF
022
[01]
STOPPER
023
[01]
NUT
M8,L19
024
[04]
BOLT, W/WASHER
M6,L20
026
[01]
BOLT, HEXAGON
M6,L25
027
[02]
NUT, HEXAGON
M6,L5
028
[02]
BOLT, W/WASHER
M6,L40
029
[01]
GASKET, COVER
030
[01]
GASKET
032
[01]
HOUSING SUB-ASSY,
032-001
[01]
HOUSING, FULL LOAD
032-002
[01]
BLOCK, SLIDING
032-003
[01]
SHAFT, LEVER SUPPO
032-004
[01]
PLUG, SCREW
032-005
[01]
ADAPTER
032-006
[01]
BUSHING
032-007
[01]
SPRING, MECHANICAL
032-008
[01]
SPRING, MECHANICAL
032-009
[01]
CAM, FULL STOP
032-010
[01]
PIN, CONNECTING
032-011
[01]
PLATE, COVER
032-012
[01]
SCREW, STOPPER
032-013
[01]
NUT
032-014
[01]
NUT, CAP
032-015
[02]
WASHER, DRAIN SCRE
T1.0
032-016
[01]
BOLT, W/WASHER
M6,L16
032-017
[02]
NUT, HEXAGON
M6,L5
032-018
[01]
NUT, HEXAGON
M6,L36
032-019
[01]
O-RING
ID52.5
032-020
[01]
O-RING
ID47.2
032-021
[01]
ADAPTER
032-022
[01]
SPRING, MECHANICAL
032-023
[01]
E-RING
032-024
[1C]
WASHER, PLATE, SK
T0.05
032-024
[1C]
WASHER, PLATE, SK
T0.1
032-024
[1C]
WASHER, PLATE, SK
T0.2
032-025
[01]
BOLT, W/WASHER
M6,L16
033
[01]
ARM SUB-ASSY
034
[01]
SPRING, RETURN
035
[01]
PLATE
037
[02]
BOLT, DIAPHRAGM CO
M5,L13
040
[01]
NUT, ROUND
M12L12.5 -0107
041
[01]
WASHER, SPRING
T2.5 -0107
042
[01]
TUBE, RUBBER
043
[03]
BOLT, W/WASHER
M6,L16
044
[01]
PLUG, SCREW
045
[01]
PLATE, COVER
046
[03]
BOLT, W/WASHER
M6,L14
047
[01]
BRACKET SUB-ASSY,
048
[01]
ARM SUB-ASSY
049
[01]
STOPPER
050
[04]
BOLT, W/WASHER
M6,L35
051
[01]
O-RING
ID9.0
053
[01]
SPRING, RETURN
054
[01]
COVER, SPRING
056
[01]
WASHER, LOCK
T0.5
057
[01]
WASHER, LOCK
T2.0
058
[01]
PLATE
059
[01]
O-RING
ID39.5
060
[01]
GASKET
061
[1C]
SHAFT, SLIDING WEI
L31.9
061
[1C]
SHAFT, SLIDING WEI
L31.7
061
[1C]
SHAFT, SLIDING WEI
L31.5
061
[1C]
SHAFT, SLIDING WEI
L31.3
061
[1C]
SHAFT, SLIDING WEI
L31.1
061
[1C]
SHAFT, SLIDING WEI
L30.9
061
[1C]
SHAFT, SLIDING WEI
L30.7
061
[1C]
SHAFT, SLIDING WEI
L32.0
061
[1C]
SHAFT, SLIDING WEI
L32.1
063
[1C]
WASHER, PLATE, SK
T0.1
063
[1C]
WASHER, PLATE, SK
T0.2
063
[1C]
WASHER, PLATE, SK
T0.5
064
[1C]
WASHER, LOCK
T0.2
064
[1C]
WASHER, LOCK
T0.3
064
[1C]
WASHER, LOCK
T0.4
064
[1C]
WASHER, LOCK
T0.5
067
[01]
ADAPTER ASSY
067-001
[01]
SCREW, ADPTER
067-002
[01]
ADAPTER
067-003
[01]
SPRING, MECHANICAL
067-004
[01]
E-RING
067-005
[1C]
WASHER, PLATE, SK
T0.2
067-005
[1C]
WASHER, PLATE, SK
T0.5
068
[02]
WASHER, COPPER PLA
T1,FOR M16
069
[02]
SPRING SUB-ASSY, R
070
[01]
CAP
071
[01]
NUT, HEXAGON, W/HO
075
[01]
BOLT, W/WASHER
M6,L20
076
[01]
BOLT, W/WASHER
M6,L16
077
[2C]
WASHER, LOCK
T0.5
077
[2C]
WASHER, LOCK
T0.55
077
[2C]
WASHER, LOCK
T0.6
077
[2C]
WASHER, LOCK
T0.65
077
[2C]
WASHER, LOCK
T0.7
077
[2C]
WASHER, LOCK
T0.75
077
[2C]
WASHER, LOCK
T0.8
078
[01]
BRACKET, STOP WIRE
079
[01]
SCREW, LEVER STOP
080
[01]
BRACKET, STOP WIRE
082
[01]
SWITCH KIT, CONTRO
083
[01]
LEVER SET
083-001
[01]
BRACKET, STOP WIRE
083-002
[01]
LEVER SUB-ASSY, AD
083-003
[01]
LEVER, ADJUSTING
083-004
[01]
LEVER, ADJUSTING
083-005
[01]
NUT, LOCK
M6,L5
083-006
[01]
COLLAR, STEEL
083-007
[01]
BOLT, W/WASHER
M6,L20
083-008
[05]
WASHER, PLATE
T1.0
083-009
[04]
WASHER, PLATE
M6,T1.6
083-010
[02]
PIN, SPLIT
D2,L15
083-011
[01]
SCREW, LEVER STOP
083-012
[02]
PIN, SHACKLE

Include in ##:

09130-04941 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09130-04941

GOVERNOR ASSY, MEC
