09080-05721 GOVERNOR ASSY, MEC Denso Cross


Rating:
40
Buy GOVERNOR ASSY, MEC 09080-05721 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

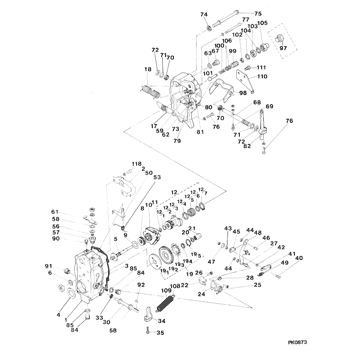

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09080-05721
GOVERNOR ASSY, MEC
RUV
001
[01]
HOUSING SUB-ASSY,
001-001
[01]
BEARING, OILLESS
ID8,OD12
002
[01]
GUIDE SUB-ASSY, OI
003
[01]
GASKET
-9103
003
[01]
GASKET
9103-
004
[01]
WASHER, STEEL PLAT
T0.6
005
[01]
SHAFT SUB-ASSY, GO
006
[01]
WASHER, STEEL PLAT
T2.3
008
[01]
BEARING, BALL
OD31
009
[04]
WASHER, PLATE, SK
T0.1
010
[01]
FLYWEIGHT ASSY
011
[01]
RING, SHAFT SNAP
ID11
012
[01]
SLEEVE SUB-ASSY, F
012-001
[01]
RING, SNAP
ID14
012-002
[01]
BEARING, BALL
OD31
012-003
[01]
SLEEVE SUB-ASSY, G
012-004
[C]
WASHER, PLATE, SK
T0.20
012-004
[C]
WASHER, PLATE, SK
T0.4
012-004
[C]
WASHER, PLATE, SK
T0.15
012-005
[01]
SPRING, MECHANICAL
012-006
[C]
PLATE, SPRING
S0.2
012-006
[C]
PLATE, SPRING
S0.3
012-006
[C]
PLATE, SPRING
S0.4
012-007
[01]
RING, SHAFT SNAP
ID15
017
[01]
SEAT SUB-ASSY, SPR
018
[01]
SPRING, SPEED CONT
019
[01]
GEAR ASSY
019-001
[01]
BUSHING, CAMSHAFT
019-002
[01]
GEAR, GOVERNOR
019-003
[01]
DISC, SLIP
019-004
[C]
WASHER, PLATE, SK
T0.15
019-005
[01]
RING, SHAFT SNAP
ID21
020
[01]
WASHER, SPRING
T3
021
[01]
NUT, ROUND
022
[01]
ARM SUB-ASSY
024
[01]
SPRING, B
-8111
024
[01]
SPRING, B
8111-
025
[01]
SPRING, SAFETY
026
[01]
BOLT, GOVERNOR STO
027
[01]
BOLT, CONNECTING
-8111
027
[01]
BOLT, CONNECTING
8111-
028
[01]
WASHER, LOCK
-8111
028
[01]
WASHER, LOCK
8111-
030
[01]
SHAFT ASSY, GOVERN
033
[01]
SEAL, OIL
034
[01]
STOPPER
-8104
034
[01]
STOPPER
8104-
035
[01]
BOLT, SLOTTED HEXA
040
[01]
PIN, CONNECTING
041
[01]
ARM, SPRING
042
[01]
BUSHING
043
[01]
BUSHING
044
[02]
E-RING
045
[01]
SHACKLE
046
[01]
PIN, SHACKLE
047
[01]
WASHER, LOCK
048
[01]
LEVER ASSY, FLOATI
-8111
048
[01]
LEVER ASSY, FLOATI
8111-
049
[01]
SPRING, START
050
[01]
ARM SUB-ASSY
053
[01]
SPRING, RETURN
056
[01]
O-RING
ID7.8
057
[01]
BUSHING, BEARING
058
[C]
WASHER, PLATE, SK
T0.5
058
[C]
WASHER, PLATE, SK
T0.1
058
[C]
WASHER, PLATE, SK
T0.2
059
[01]
STOPPER
061
[01]
STOPPER
062
[01]
STOPPER
063
[02]
WASHER, AIR BLEEDE
067
[01]
SCREW,PLUG
-8508
067
[01]
PLUG, SCREW
8508-
068
[01]
SHAFT
069
[01]
SCREW, STOP
070
[01]
SEAL, OIL
071
[02]
WASHER, STEEL PLAT
T1
072
[02]
E-RING
D10
073
[01]
COVER SUB-ASSY, GO
074
[03]
WASHER, COUPLING S
075
[01]
BOLT, SLOTTED HEXA
M8,L114
076
[05]
BOLT, W/WASHER
M6,L25
077
[02]
BOLT, W/WASHER
M6,L70
079
[02]
NUT, HEXAGON, W/HO
M8
080
[01]
BOLT, HEXAGON, W/
M6,L35
081
[01]
NUT, LOCK
M6,L5
082
[01]
LEVER, ADJUSTING
084
[02]
PLUG, SCREW
085
[02]
WASHER, FUEL PIPE
ID11.8T2
090
[01]
SCREW, STOP
091
[01]
BUSHING, BEARING
092
[01]
KEY, WOODRUFF
T2.0
093
[01]
GASKET
9011--9408
093
[01]
GASKET
9409-
097
[01]
SCREW,PLUG
M16,L17 8306-
098
[01]
LEVER SUB-ASSY
DISCONTINUED -8306
099
[01]
SCREW, ADJUSTING
DISCONTINUED -8306
100
[01]
SPRING, MECHANICAL
DISCONTINUED -8306
101
[01]
ADAPTER
DISCONTINUED -8306
102
[01]
E-RING
DISCONTINUED -8306
103
[01]
NUT, HEXAGON, W/HO
DISCONTINUED -8306
104
[02]
WASHER, COPPER PLA
T1 -8306
104
[01]
WASHER, COPPER PLA
CHANGE QUANTITY 8306-
105
[01]
CAP
DISCONTINUED -8306
106
[01]
WASHER, PLATE, SK
T0.5 -8306
108
[01]
SPRING, RETURN
109
[01]
TUBE, RUBBER
110
[01]
SUPPORT, PUMP
111
[03]
BOLT, W/WASHER
M6,L14
