09080-03961 GOVERNOR ASSY, MEC Denso Cross


Rating:
6
Buy GOVERNOR ASSY, MEC 09080-03961 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

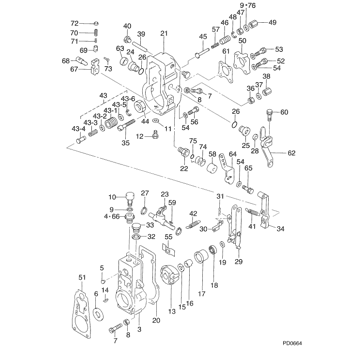

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09080-03961
GOVERNOR ASSY, MEC
RSV
003
[01]
HOUSING, GOVERNOR
-8408
003
[01]
HOUSING, GOVERNOR
8409-
004
[01]
SEAT, BREATHER
-7809
005
[01]
PIN
-8304
006
[01]
WASHER, STEEL PLAT
T0.6
007
[02]
STOPPER
L45
008
[02]
NUT, HEXAGON, W/HO
M8
009
[01]
WASHER, COPPER PLA
ID18.2 -7809
010
[01]
PLUG, OIL
-7809
011
[01]
WASHER, FUEL PIPE
ID11.8T2
012
[01]
PLUG, SCREW
013
[01]
FLYWEIGHT ASSY
014
[01]
KEY, WOODRUFF
T3.0
015
[01]
WASHER, SPRING
T2.5
016
[01]
NUT, ROUND
M12L12.5
017
[01]
SLEEVE, GOVERNOR
018
[01]
BEARING, BALL
OD30
019
[4C]
WASHER, PLATE, SK
T0.2
019
[4C]
WASHER, PLATE, SK
T0.3
019
[4C]
WASHER, PLATE, SK
T0.4
019
[4C]
WASHER, PLATE, SK
T0.1
019
[4C]
WASHER, PLATE, SK
T1.0
020
[01]
GASKET
021
[01]
COVER SUB-ASSY, GO
022
[01]
BUSHING, BEARING
-9707
022
[01]
BUSHING, BEARING
9707-
023
[01]
LEVER ASSY, SWIEVE
024
[01]
BUSHING, LEVER
025
[01]
BUSHING, LEVER
026
[02]
O-RING
ID17.6
027
[02]
WASHER, SNAP
ID15
028
[01]
SEAL, OIL
029
[01]
LEVER ASSY, CONTRO
L/R:2
030
[01]
SHACKLE ASSY
031
[01]
PIN, SPLIT
D2,L12 -7701
031
[01]
PIN, SPLIT
D2,L10 7701-
032
[01]
WASHER, COPPER PLA
ID16.3T1
033
[01]
SCREW,PLUG
M16,L17
034
[01]
LEVER, TENSION
035
[01]
SCREW, STROKE ADJU
036
[01]
NUT, HEXAGON
M8
037
[01]
WASHER, COPPER PLA
T1,ID8.2
038
[01]
NUT, CAP
L18
039
[01]
SHAFT, LEVER SUPPO
040
[02]
PLUG, SCREW
041
[01]
SPRING, SPEED CONT
042
[01]
SPRING, START
043
[01]
ADAPTER ASSY
043-001
[01]
SCREW, ADPTER
043-002
[C]
WASHER, PLATE, SK
T0.1
043-002
[C]
WASHER, PLATE, SK
T0.25
043-002
[C]
WASHER, PLATE, SK
T0.5
043-002
[C]
WASHER, PLATE, SK
T0.2
043-003
[01]
SPRING, MECHANICAL
043-004
[01]
ADAPTER
043-005
[01]
WASHER
043-006
[01]
E-RING
D9, T0.7
044
[01]
NUT, ADAPTER LOCK
045
[01]
ADAPTER
046
[01]
SCREW, ADPTER
047
[01]
NUT, HEXAGON
M12
048
[01]
E-RING
D9, T0.7
049
[01]
NUT, CAP
050
[01]
PLATE SUB-ASSY, CO
051
[01]
GASKET
-9408
051
[01]
GASKET
9409-
052
[02]
BOLT, HEXAGON
M6,L24 -7610
052
[02]
BOLT, HEXAGON
M6,L20 7611--8203
052
[02]
BOLT, W/WASHER
M6,L24 8204-
053
[02]
BOLT, HEXAGON
M6,L20 -7705
053
[02]
BOLT, W/WASHER
M6,L20 7706--8203
053
[02]
BOLT, W/WASHER
M6,L25 8204-
054
[10]
WASHER, SPRING
T1.5 -7610
054
[08]
WASHER, SPRING
CHANGE QUANTITY 7611--8203
054
[06]
WASHER, SPRING
CHANGE QUANTITY 8204-
055
[01]
PLATE
056
[06]
BOLT, HEXAGON
M6,L50
057
[01]
SPRING, MECHANICAL
058
[01]
COVER, SPRING
059
[01]
KEY, WOODRUFF
T3.0
060
[01]
BOLT, W/WASHER
M6,L22
061
[01]
GASKET, COVER PLAT
062
[01]
LEVER SUB-ASSY, AD
063
[01]
CAP, LEVER
064
[01]
STOPPER
065
[01]
BOLT, HEXAGON
M6,L12 -8203
065
[01]
BOLT, W/WASHER
M6,L14 8204-
066
[01]
PLUG, SCREW
7809-
067
[01]
LEVER, SUPPORT
068
[01]
SHAFT, MECHANICAL
069
[01]
CUP, SPRING
070
[01]
SPRING, B
OD6.5
071
[01]
SPRING, A
OD3.8
072
[01]
SEAT, SPRING
074
[01]
SPRING, RETURN
075
[01]
O-RING
ID9.0
076
[01]
WASHER, AIR BLEEDE
T1.6ID12 8312-

Include in ##:

09000-09650 as GOVERNOR ASSY, MEC
09080-03961 GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09080-03961

GOVERNOR ASSY, MEC
