19010-01153 BODY ASSY, INJECTI Denso Cross


Rating:
15
Buy BODY ASSY, INJECTI 19010-01153 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

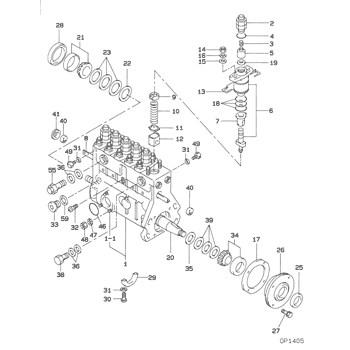

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19010-01153
BODY ASSY, INJECTI
NB6
001
[01]
HOUSING SUB-ASSY,
-0112
001
[01]
HOUSING SUB-ASSY,
0201-
001-001
[03]
BOLT, STUD
M6,L26
002
[06]
HOLDER SUB-ASSY, D
-9911
002
[06]
HOLDER SUB-ASSY, D
9912--0009
002
[06]
HOLDER SUB-ASSY, D
0009-
003
[06]
SPRING, DELIVERY V
-0009
003
[06]
SPRING, DELIVERY V
L18.41 0009-
004
[06]
O-RING
ID17
005
[06]
VALVE SUB-ASSY, IN
-0009
005
[06]
VALVE SUB-ASSY, IN
MK:1430 0009-
006
[06]
ELEMENT SUB-ASSY,
-0112
006
[06]
ELEMENT SUB-ASSY,
0201-
007
[06]
SLEEVE SUB-ASSY, C
008
[01]
RACK, CONTROL
009
[06]
SEAT, SPRING, UPR
010
[06]
SPRING, PUMP PLUNG
L48.6
011
[06]
SEAT, SPRING, LWR
012
[06]
TAPPET SUB-ASSY,IN
013
[C]
SHIM, ELEMENT HOLD
T1.75
013
[C]
SHIM, ELEMENT HOLD
T1.8
013
[C]
SHIM, ELEMENT HOLD
T1.85
013
[C]
SHIM, ELEMENT HOLD
T1.9
013
[C]
SHIM, ELEMENT HOLD
T1.95
013
[C]
SHIM, ELEMENT HOLD
T2.0
013
[C]
SHIM, ELEMENT HOLD
T2.05
013
[C]
SHIM, ELEMENT HOLD
T2.1
013
[C]
SHIM, ELEMENT HOLD
T2.15
013
[C]
SHIM, ELEMENT HOLD
T2.2
013
[C]
SHIM, ELEMENT HOLD
T2.25
013
[C]
SHIM, ELEMENT HOLD
T2.3
013
[C]
SHIM, ELEMENT HOLD
T1.65
013
[C]
SHIM, ELEMENT HOLD
T1.7
014
[12]
NUT, HEXAGON
M8
015
[12]
WASHER, PLATE, SK
T1.6,D16
016
[12]
WASHER, SPRING
FOR M8
017
[01]
GASKET, BEARING CO
018
[18]
O-RING
ID24.2T2 -0112
018
[12]
O-RING
ID24.3T3 0201-
019
[06]
WASHER, COPPER PLA
T0.5
020
[01]
CAMSHAFT, INJECTIO
021
[01]
BEARING, ROLLER
OD52ID20
022
[01]
RING, CAMSHAFT ADJ
023
[3C]
PLATE, CAMSHAFT SH
T0.1
023
[3C]
PLATE, CAMSHAFT SH
T0.16
023
[3C]
PLATE, CAMSHAFT SH
T0.3
023
[3C]
PLATE, CAMSHAFT SH
T0.5
023
[3C]
PLATE, CAMSHAFT SH
T0.12
023
[3C]
PLATE, CAMSHAFT SH
T0.14
023
[3C]
PLATE, CAMSHAFT SH
T0.18
023
[3C]
PLATE, CAMSHAFT SH
T0.03
025
[01]
SEAL, OIL
D35.5,T7
026
[01]
COVER, BEARING
027
[04]
BOLT, W/WASHER
M6,L20
028
[01]
RETAINER, BEARING
029
[01]
BEARING, CENTER
-9612
029
[01]
BEARING, CENTER
9701-
030
[02]
SCREW
M6,L18 -9609
030
[02]
SCREW
M6,L18 9610-
031
[04]
WASHER, DRAIN SCRE
T1.0
032
[01]
SCREW, RACK GUIDE
M6,L9.8
033
[01]
PLUG, SCREW
M16
034
[01]
BEARING, ROLLER
OD52,ID25
035
[01]
RING, CAMSHAFT ADJ
036
[04]
WASHER, FUEL PIPE
ID13.8
038
[01]
SCREW, HOLLOW
M14,L26
039
[3C]
PLATE, CAMSHAFT SH
T0.1
039
[3C]
PLATE, CAMSHAFT SH
T0.16
039
[3C]
PLATE, CAMSHAFT SH
T0.3
039
[3C]
PLATE, CAMSHAFT SH
T0.5
039
[3C]
PLATE, CAMSHAFT SH
T0.12
039
[3C]
PLATE, CAMSHAFT SH
T0.14
039
[3C]
PLATE, CAMSHAFT SH
T0.18
039
[3C]
PLATE, CAMSHAFT SH
T0.03
040
[02]
BUSHING, CONTROL R
041
[01]
BUSHING, CONTROL R
046
[01]
O-RING
ID32.0
047
[03]
WASHER, SPRING
T1.5
048
[03]
NUT, HEXAGON
M6,L5
049
[02]
SCREW, AIR BLEEDER
055
[01]
VALVE ASSY, OVERFL
059
[01]
WASHER, COPPER PLA
ID16.3T1

Include in ##:

09200-02840 as BODY ASSY, INJECTI
19010-01153 BODY ASSY, INJECTI
