09010-02991 BODY ASSY, INJECTI Denso Cross


Rating:
13
Buy BODY ASSY, INJECTI 09010-02991 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

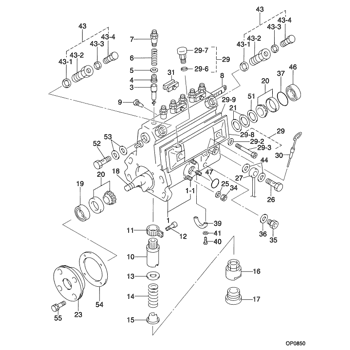

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09010-02991
BODY ASSY, INJECTI
A6,OLD
001
[01]
HOUSING SUB-ASSY,
001-001
[01]
BOLT, STUD
M6,L26
003
[06]
ELEMENT SUB-ASSY,
MK:0650
004
[06]
VALVE SUB-ASSY, IN
MK:161S5
005
[06]
GASKET, DELIVERY V
D18,ID12
006
[06]
SPRING, DELIVERY V
007
[06]
HOLDER, DELIVERY V
008
[01]
RACK, CONTROL
009
[01]
SCREW, RACK GUIDE
M6,L9.8
010
[06]
SLEEVE, PLUNGER CO
011
[06]
PINION, PLUNGER CO
012
[06]
SCREW, PLUNGER CON
013
[06]
SEAT, SPRING, UPR
014
[06]
SPRING, PUMP PLUNG
015
[06]
SEAT, SPRING, LWR
016
[06]
TAPPET SUB-ASSY,IN
017
[06]
PLUG, INJECTION PU
M26,D30
018
[01]
CAMSHAFT, INJECTIO
019
[01]
SEAL, OIL
D28,T7.5
020
[02]
BEARING, ROLLER
D40,T13
021
[02]
RING, CAMSHAFT ADJ
023
[01]
COVER, BEARING
025
[03]
WASHER, SPRING
T1.5
026
[01]
SCREW, HOLLOW
M10,L10
027
[01]
PIPE ASSY, OVERFLO
029
[01]
COVER SUB-ASSY, IN
029-002
[02]
PACKING, AIR BLEED
ID6.7
029-003
[02]
SCREW
M6,L54
029-006
[01]
WASHER, AIR BLEEDE
T1.6ID12
029-007
[01]
CLEANER, INJECTION
029-008
[01]
PLATE, INJECTION P
029-009
[01]
GASKET, INJECTION
031
[01]
PLATE SET, VALVE H
IRON
034
[03]
NUT, HEXAGON
M6,L5
035
[01]
SCREW, DRAIN
036
[01]
WASHER, DRAIN SCRE
T1.0
037
[01]
O-RING
ID45.5
039
[01]
BEARING, CENTER
040
[02]
SCREW, GUIDE
-9007
040
[02]
SCREW, CROSSRECESS
M5,L35 9007-
041
[02]
WASHER, COPPER PLA
T1
043
[02]
BLEEDER SUB-ASSY,
043-001
[02]
WASHER, AIR BLEEDE
T1.6ID12
043-002
[02]
NIPPLE, AIR BLEEDE
043-003
[02]
PACKING, AIR BLEED
ID6.7
043-004
[02]
SCREW, AIR BLEEDER
044
[02]
WASHER, INJECTION
T1,D13.9
046
[01]
SEAL, OIL
D28,T6
047
[01]
O-RING
ID32.0
051
[6C]
PLATE, CAMSHAFT SH
T0.1
051
[6C]
PLATE, CAMSHAFT SH
T0.12
051
[6C]
PLATE, CAMSHAFT SH
T0.14
051
[6C]
PLATE, CAMSHAFT SH
T0.16
051
[6C]
PLATE, CAMSHAFT SH
T0.18
051
[6C]
PLATE, CAMSHAFT SH
T0.5
051
[6C]
PLATE, CAMSHAFT SH
T0.3
051
[6C]
PLATE, CAMSHAFT SH
T1.0
051
[6C]
PLATE, CAMSHAFT SH
T1.5
052
[01]
SCREW, HOLLOW
M14,L26
053
[02]
WASHER, FUEL PIPE
ID13.8
054
[01]
GASKET, BEARING CO
055
[04]
BOLT, W/WASHER
M6,L14

Include in ##:

09000-09910 as BODY ASSY, INJECTI
09010-02991 BODY ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09010-02991

BODY ASSY, INJECTI
